Jasic MIG Welders

Jasic EVO MIG 200C PFC Inverter (Trolley Version) (MIG Welder)

Earn 1,189 points with this purchase

£1,189.00£1,426.80 Exc VATInc VAT

SGL-selected packages · Free compatible plug · UK support
SKU: EM-200CT Categories: , , Tags: , , , Build your package Unlock savings on selected categories ↓ Brand:
BUILD YOUR SETUP

Complete your machine in three quick steps

Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.

1. Choose your free plug

Match the machine rating plate and your supply. Plug supplied loose. Illustrations are indicative.

2. Choose your package

Category savings apply to eligible full-price products while the machine offer remains in your basket. Your highest qualifying rate applies; discounts do not add together. Package prices are separate and exclude VAT.

3. Add your complete setup to the basket

Machine guide
Processes
MIG/MAG / DC/Lift TIG / MMA/ARC
Power supply
110/230V single-phase (dual voltage)
Duty cycle
MIG/MMA/TIG: 30% at maximum rated output (40°C; output depends on input voltage)
Suitable metals
mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode
Single-pass
MIG: about 0.8–8 mm; TIG: about 0.5–8 mm; MMA: about 2–10 mm
Multi-pass
MIG: up to about 16 mm; TIG: up to about 16 mm; MMA: up to about 20 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

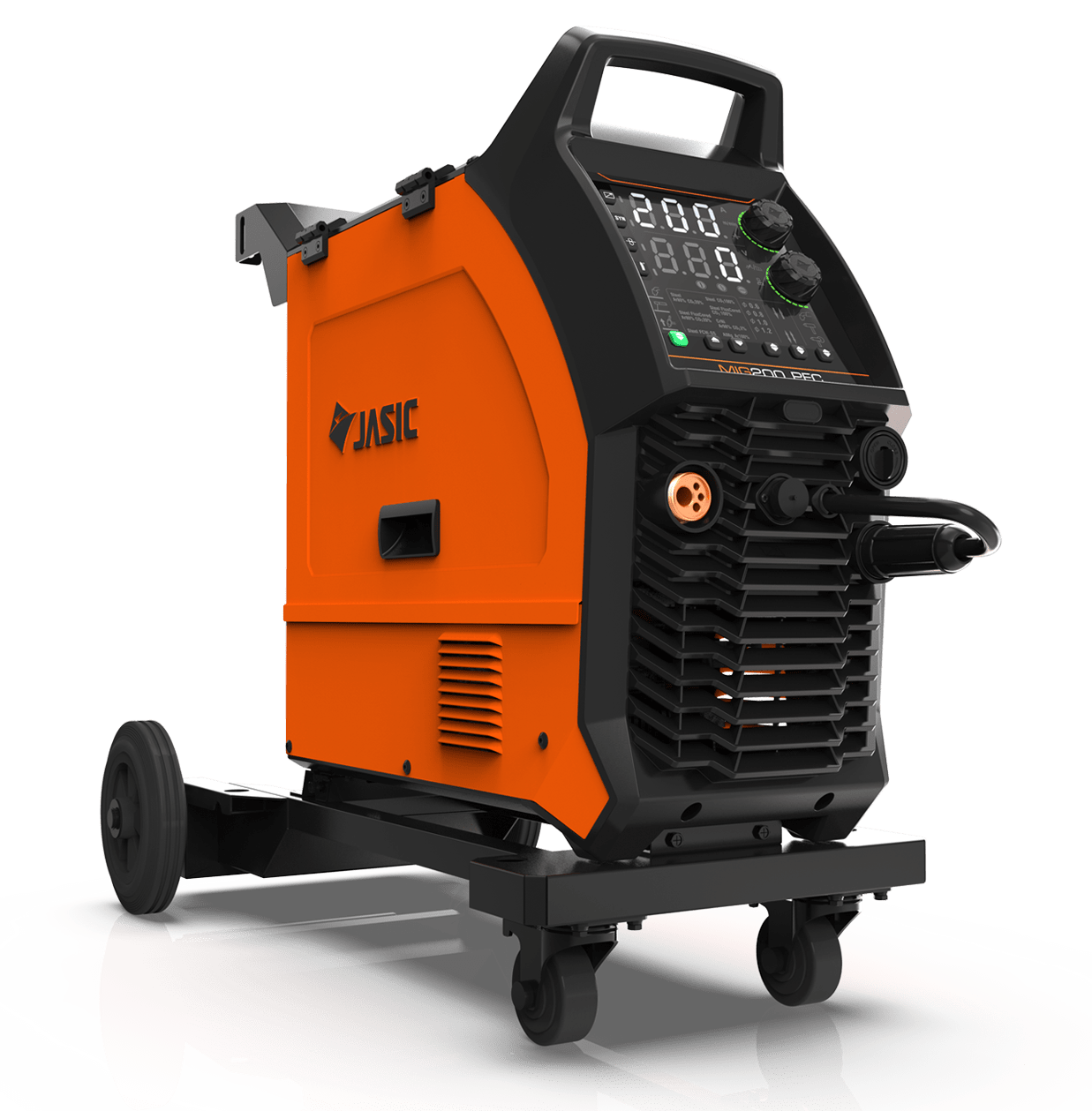

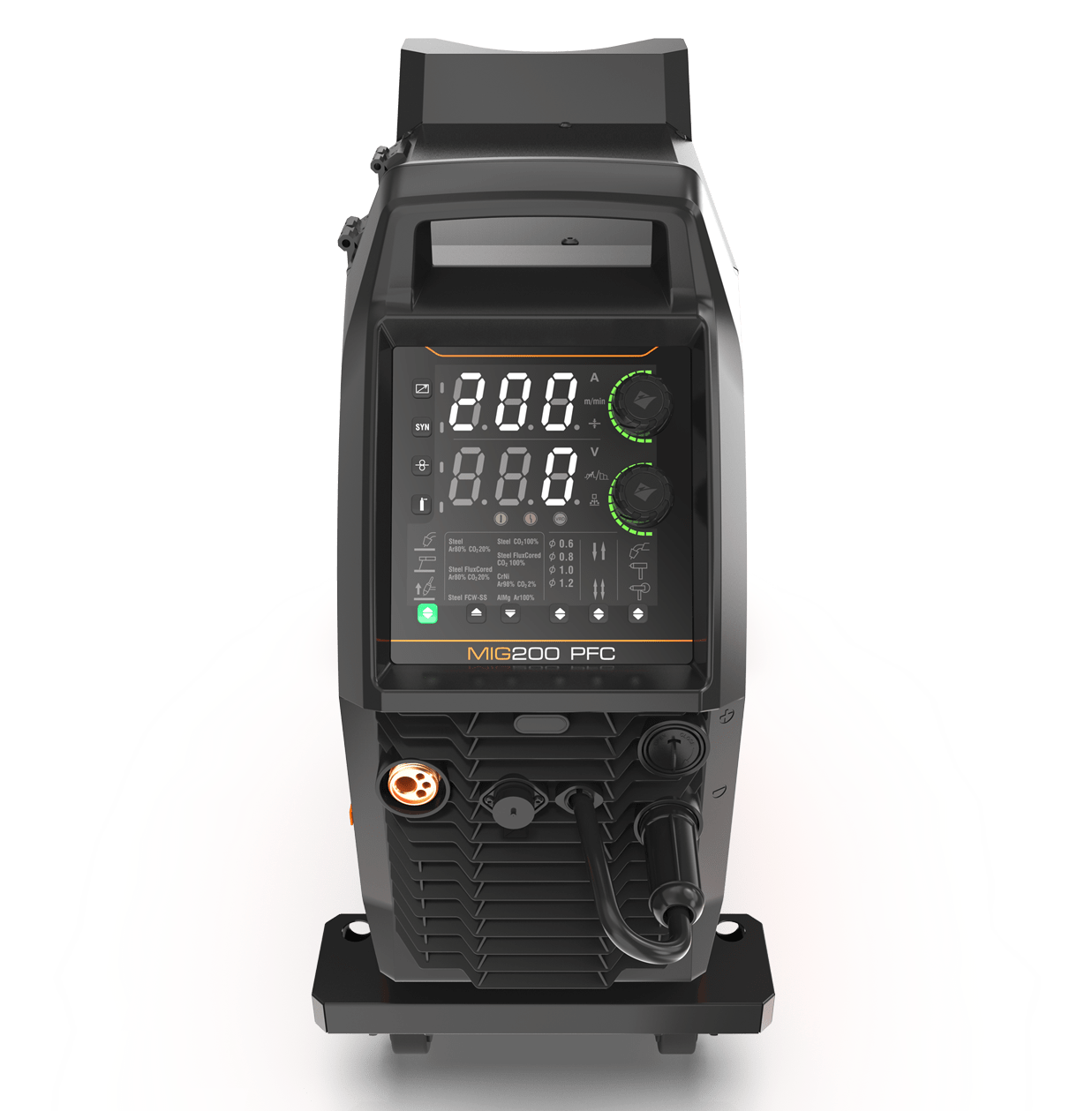

Jasic EVO MIG 200C PFC Inverter (Trolley Version) (MIG Welder)

The Jasic EVO MIG 200C PFC Inverter (Trolley Version) (MIG Welder) is a 200A mig/mag / dc/lift tig / mma/arc machine for workshop, fabrication, maintenance or site work. The summary below makes its processes, electrical supply and practical material capacity easy to compare.

Machine capability at a glance

Processes MIG/MAG / DC/Lift TIG / MMA/ARC
Power supply 110/230V single-phase (dual voltage)
Suitable metals mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode
Typical single-pass guide MIG: about 0.8–8 mm; TIG: about 0.5–8 mm; MMA: about 2–10 mm
Typical multi-pass guide MIG: up to about 16 mm; TIG: up to about 16 mm; MMA: up to about 20 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

Full product details

Jasic EVO MIG 200C PFC Inverter (Trolley Version) – 5 Year Warranty Package Includes: Inverter Power Source, Trolley, 4m MIG Torch, 3m Earth Cable & Clamp, Argon Regulator, Gas Hose. Inverter includes a 0.8mm/1.0mm ‘V’ groove feedroll. Technical Data

Input voltage 95-265V, 50/60 Hz
Voltage @ AC 115V AC 230V
No load voltage 68V
MIG rated input current 38.1A 32.8A
MIG Ieff 17.4A 13.5A
MIG rated input power 4.4kVA 7.5kVA
MIG current range 30-140A 30-200A
MIG wire feed speed 2-12m/min 2-16m/min
MIG spool size 15kg – 300mm Dia.
MIG duty cycle at 40 degrees C 30%
MMA rated input current 28.3A 24.8A
MMA Ieff 15.5A 13.6A
MMA rated input power 3.2kVA 5.7kVA
MMA current range 20-110A 20-180A
MMA duty cycle at 40 degrees C 30%
TIG rated input current 24.2A 19.43A
TIG Ieff 13.3A 10.6A
TIG rated input power 2.8kVA 4.4kVA
TIG current range 5-140A 5-200A
TIG duty cycle at 40 degrees C 30%
Efficiency >80%
Power factor 0.99
Idle state power <50W
Protection class IP23S
Insulation class H
Dimensions – LxWxH 920 x 480 x 755mm
Weight 41.9kg
Recommended generator size *Generator must have AVR 6.5kVA @ 115V 11.5kVA @ 230V
