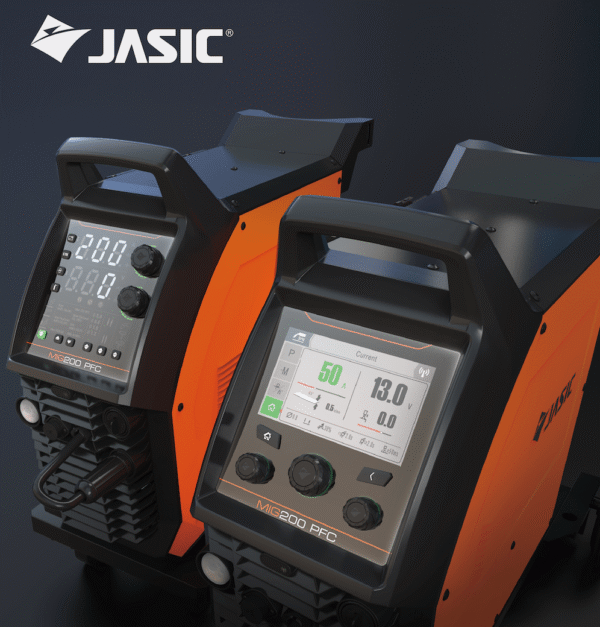

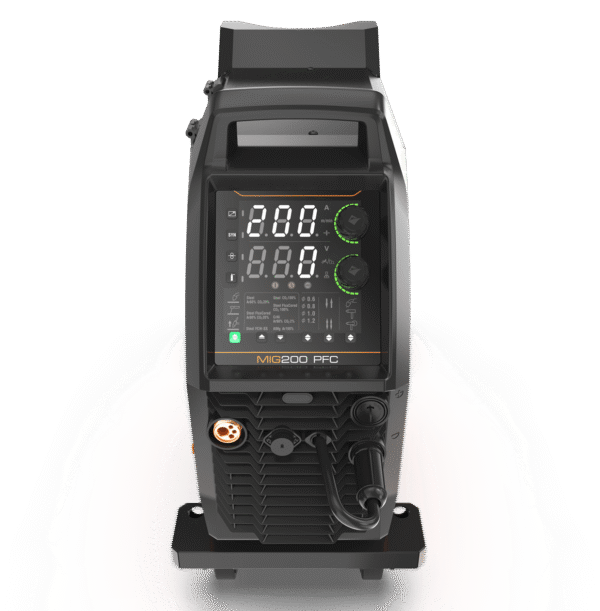

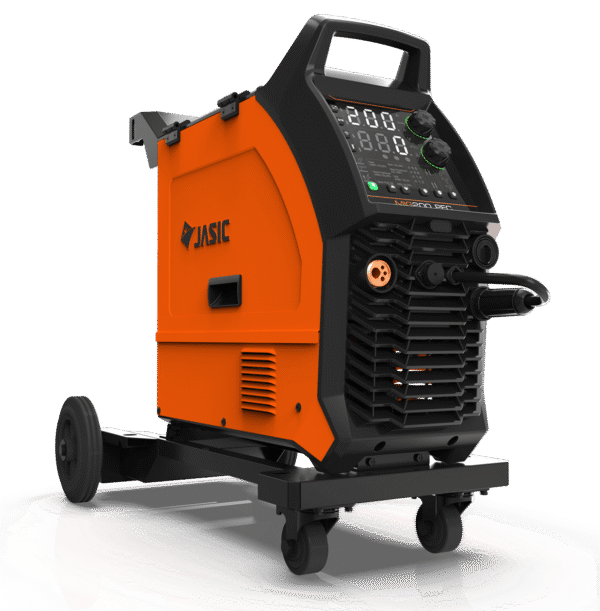

Jasic EVO MIG 200C PFC Inverter (Trolley Version) (MIG Welder)
Earn 1,155 points with this purchase
£1,155.00£1,386.00 Exc VATInc VAT
Call for further details
Dispatch resumes on Monday.
Jasic EVO MIG 200C PFC Inverter (Trolley Version) (MIG Welder)
Jasic EVO MIG 200C PFC Inverter (Trolley Version) – 5 Year Warranty
Package Includes: Inverter Power Source, Trolley, 4m MIG Torch, 3m Earth Cable & Clamp, Argon Regulator, Gas Hose.
Inverter includes a 0.8mm/1.0mm ‘V’ groove feedroll.
Technical Data
| Input voltage | 95-265V, 50/60 Hz | |
| Voltage @ | AC 115V | AC 230V |
| No load voltage | 68V | |
| MIG rated input current | 38.1A | 32.8A |
| MIG Ieff | 17.4A | 13.5A |
| MIG rated input power | 4.4kVA | 7.5kVA |
| MIG current range | 30-140A | 30-200A |
| MIG wire feed speed | 2-12m/min | 2-16m/min |
| MIG spool size | 15kg – 300mm Dia. | |
| MIG duty cycle at 40 degrees C | 30% | |
| MMA rated input current | 28.3A | 24.8A |
| MMA Ieff | 15.5A | 13.6A |
| MMA rated input power | 3.2kVA | 5.7kVA |
| MMA current range | 20-110A | 20-180A |
| MMA duty cycle at 40 degrees C | 30% | |
| TIG rated input current | 24.2A | 19.43A |
| TIG Ieff | 13.3A | 10.6A |
| TIG rated input power | 2.8kVA | 4.4kVA |
| TIG current range | 5-140A | 5-200A |
| TIG duty cycle at 40 degrees C | 30% | |
| Efficiency | >80% | |
| Power factor | 0.99 | |
| Idle state power | <50W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions – LxWxH | 920 x 480 x 755mm | |
| Weight | 41.9kg | |
| Recommended generator size *Generator must have AVR |
6.5kVA @ 115V 11.5kVA @ 230V |
|
