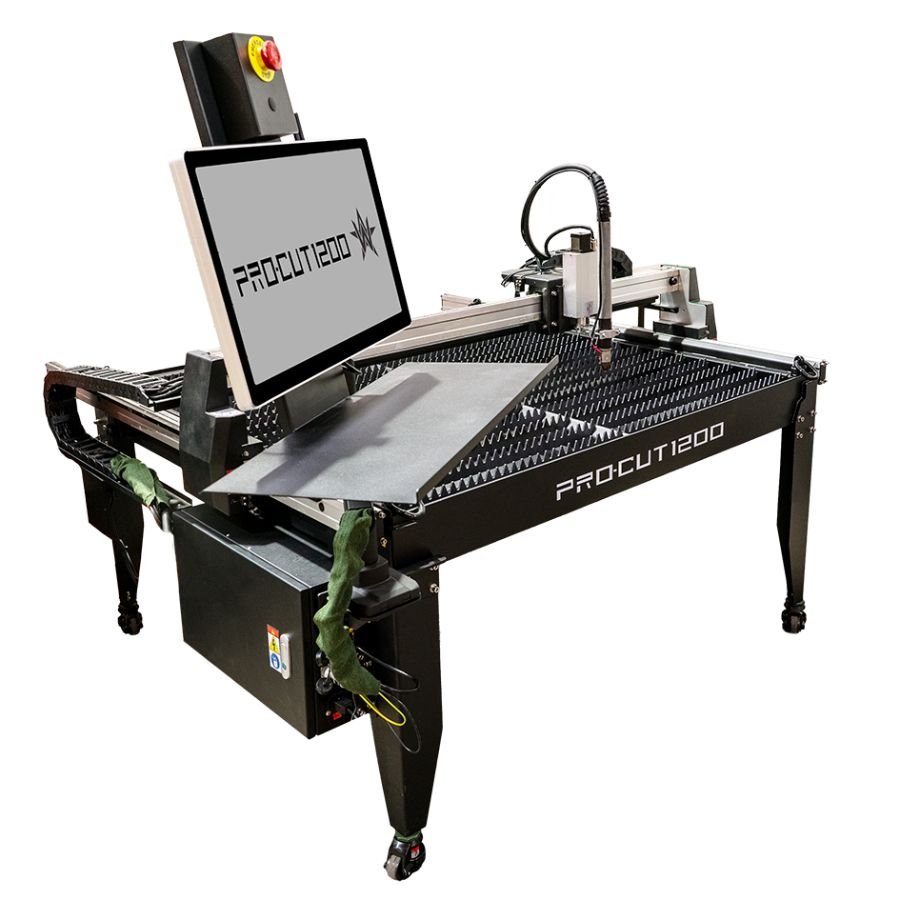

Bring accurate, repeatable plasma cutting in-house with the compact Pro-Cut 1200 CNC plasma table. Designed for workshops, fabricators, training centres and repair facilities, this professional cutting system combines a 1.2m x 1.2m cutting area, integrated waterbed, automatic torch height control and touchscreen CNC control.
The Pro-Cut 1200 is a compact CNC plasma cutting table built for users who need clean and consistent cutting without installing a full-size industrial machine. It is ideal for cutting mild steel, stainless steel, aluminium, galvanised steel and other conductive metals.
Supplied with CNC/CAM software, DXF support, nesting capability and a Windows touchscreen control station, the system is designed to help operators move from design to cutting quickly and confidently.
Sultani Gas can help you choose the right CNC table package, plasma cutter, air setup, consumables and accessories for your workshop.
Call 01622 910075This video gives a closer look at the Pro-Cut CNC table workflow, cutting performance and control system, helping you understand how the system can fit into a modern fabrication workshop.
The Pro-Cut 1200 table can be supplied with Jasic EVO plasma cutters depending on your cutting thickness requirements.

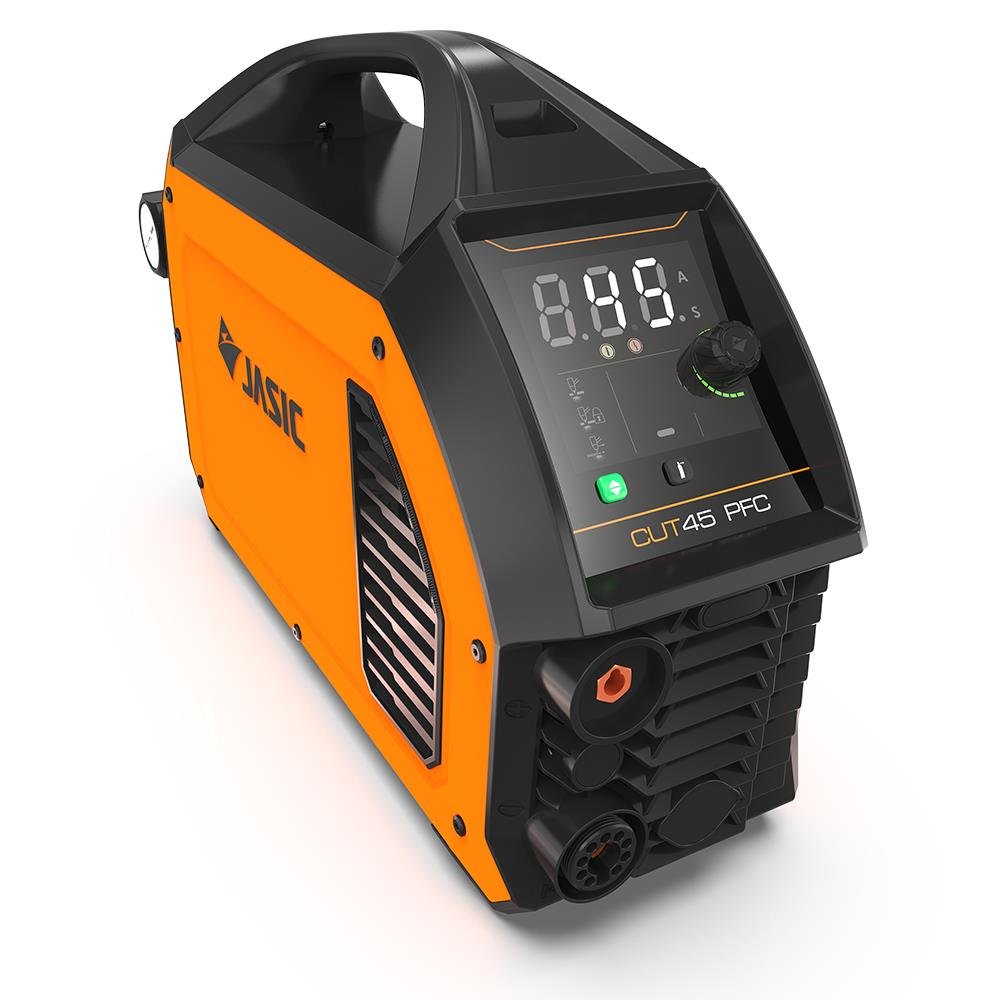

A compact CNC plasma package for workshops cutting lighter sheet and general fabrication materials. The EVO Cut 45 offers clean cutting performance in a portable single-phase plasma unit.

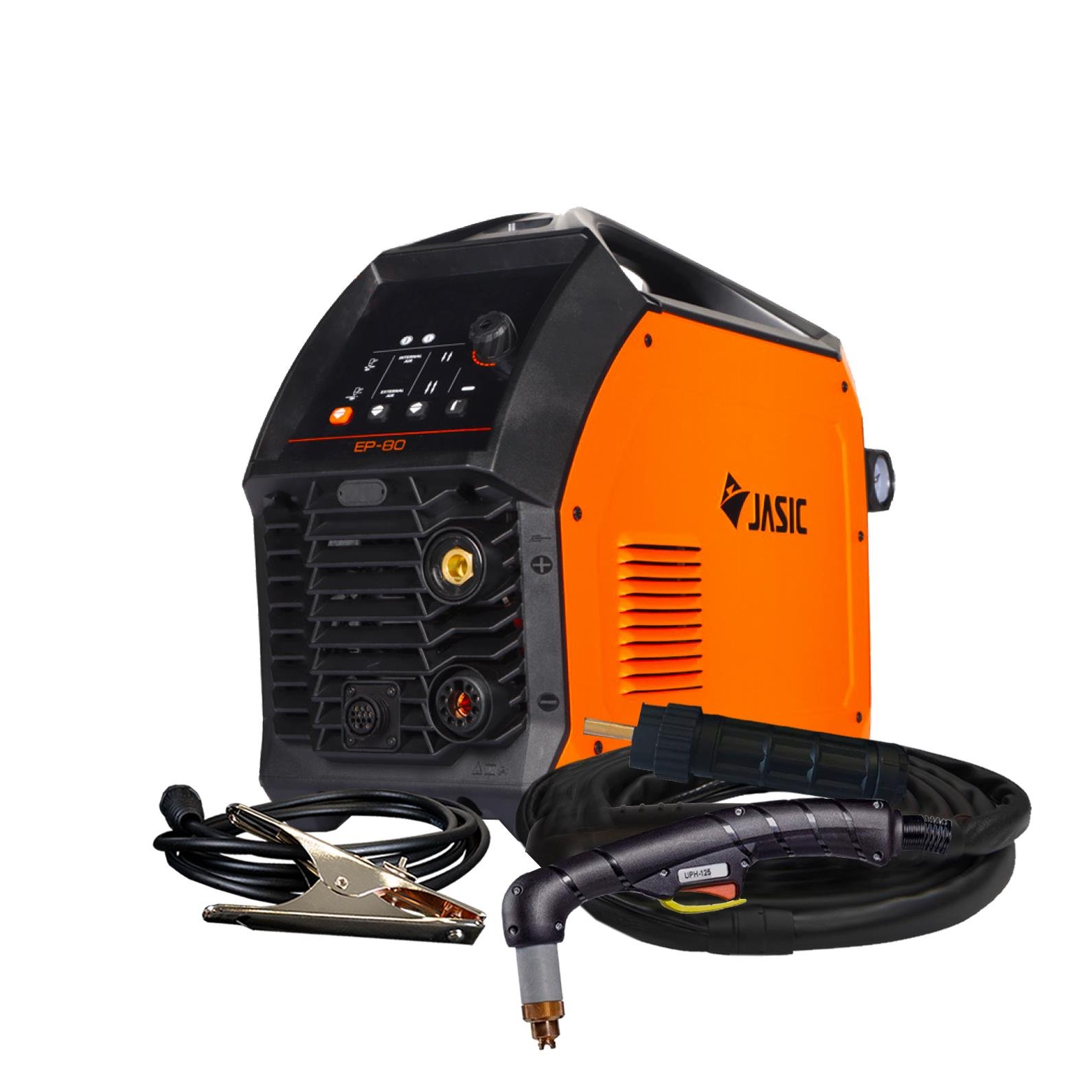

A stronger CNC plasma package for busy workshops needing more cutting capacity. The EVO Cut 80 provides powerful three-phase performance for thicker materials.

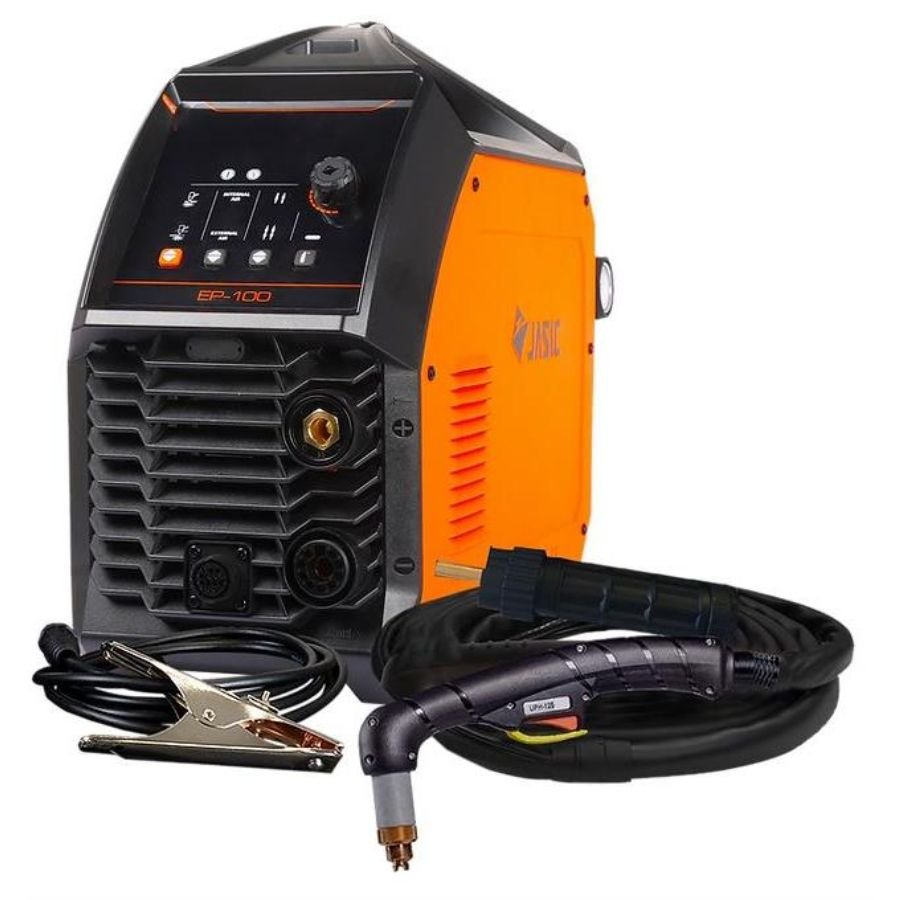

The highest capacity Pro-Cut 1200 package for workshops cutting thicker plate. The EVO Cut 100 delivers powerful CNC-ready plasma cutting performance.
The Pro-Cut 1200 combines a compact working footprint with practical features normally expected from larger CNC cutting systems.
X, Y and Z axis control gives smooth, accurate cutting movement. Automatic torch height control helps maintain the correct cutting distance across the workpiece.
A generous cutting area in a compact footprint, ideal for smaller workshops, training centres and fabrication environments where space matters.
The waterbed helps reduce sparks, fumes and debris during cutting, making the cutting process cleaner and more practical for workshop use.
Supplied with a 21 inch Windows touchscreen PC, CNC/CAM software, DXF support, template library and nesting capability.
Cutting speeds of up to 6000mm/min allow the table to work efficiently across a range of material types and thicknesses.
Designed to work with Jasic non-HF plasma sources including the EVO Cut 45, EVO Cut 80 and EVO Cut 100.
An electronic collision system helps protect the torch by stopping movement and lifting the torch if an obstruction is detected.
Heavy-duty construction with castor feet and lifting hooks helps with positioning, handling and everyday workshop use.
Key specifications for the Pro-Cut 1200 CNC plasma cutting table.
| Input Voltage | 230V AC 50/60Hz |
|---|---|
| Motors | 3A micro step motors |
| Axis | 3-axis: X, Y and Z |
| Cutting Area | 1.2m x 1.2m. Actual area approx. 1.25m x 1.25m |
| Maximum Cutting Speed | Up to 6000mm/min |
| Control System | 21 inch touchscreen PC with Windows 10 |
| Table Weight | Approx. 200kg |
| Maximum Bed Load | Approx. 175kg |
| Plasma Torch | 6m TM125 machine torch |
| Dimensions | Approx. 1650 x 1700 x 1150mm |
| Additional Features | Castors, lifting hooks, THC system and LED marker |
Allow enough working space around the table for safe operation, material loading and operator movement. A 4m x 4m working area is recommended where possible.
CNC plasma cutting is suitable for conductive metals. Cutting thickness depends on the plasma source selected and the material being cut.
The touchscreen PC is supplied with CNC/CAM software, DXF import support, template options and nesting capability. This helps operators prepare parts, arrange cutting layouts and reduce material waste.
Plasma cutting is a fast, clean and versatile cutting method for modern workshops. Unlike oxy-fuel cutting, plasma can cut both ferrous and non-ferrous metals, including stainless steel and aluminium, without pre-heating.
It also produces a narrower kerf, reduced slag and a smaller heat affected zone, helping achieve smoother and more accurate cuts on a wide range of materials. Because plasma cutting uses compressed air instead of flammable fuel gases, it can also be a safer and lower running cost option for everyday fabrication work.
Helpful answers for customers considering a Pro-Cut 1200 CNC table package.
CNC plasma table packages often depend on the chosen plasma source, installation needs, training, consumables and delivery requirements. Sultani Gas can prepare a package based on your workshop.
Torch height control automatically maintains the correct cutting distance between the torch and material, improving cut quality and helping extend consumable life.
Yes. The Pro-Cut 1200 is designed to offer CNC cutting capability in a compact footprint, making it suitable for smaller workshops, training centres and repair facilities.
Operator training is recommended so users understand the CNC software, machine setup, cutting process, consumable maintenance and safety procedures.
Speak to Sultani Gas about the Pro-Cut 1200 CNC plasma cutting table, Jasic EVO plasma packages, consumables, air requirements and installation support.
