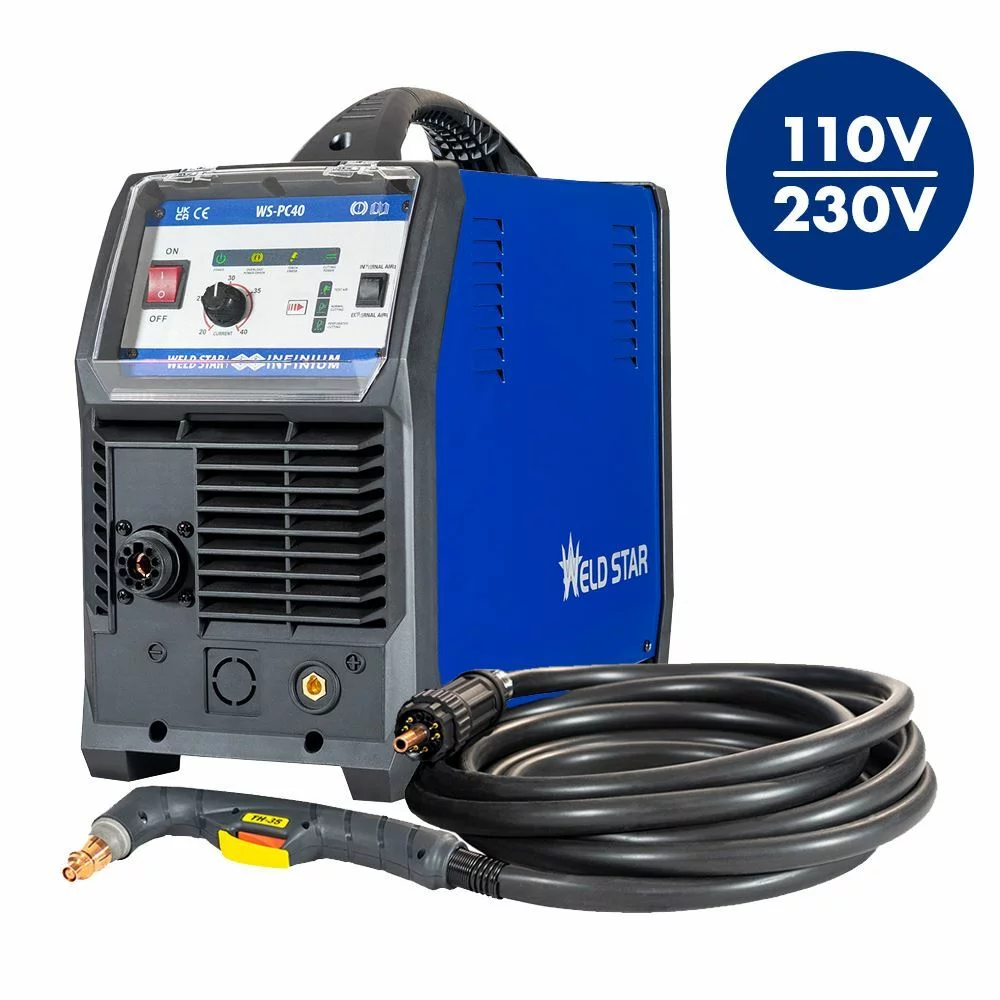

Weld Star PC40 Dual-Voltage Plasma Cutter with Built-In Compressor
Earn 1,219 points with this purchase
£1,219.00£1,462.80 Exc VATInc VAT
SGL-selected packages · Free compatible plug · UK support
Complete your machine in three quick steps
Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.
Machine guide
- Processes
- Plasma cutting
- Power supply
- 110/230V single-phase (dual voltage)
- Duty cycle
- 30A @ 35%; 40A @ 35%; 22A @ 60%; 36A @ 60%; 20A @ 100%; 30A @ 100%
- Suitable metals
- Electrically conductive metals: mild/carbon steel, stainless steel and aluminium; copper, brass and cast iron where supported by the stated torch setup
- Clean cut
- 12 mm clean/production cut
- Severance
- 16 mm maximum severance
Cut capacities are taken from the supplied technical description where detected; verify against the current rating plate/manual.
Weld Star PC40 Dual-Voltage Plasma Cutter with Built-In Compressor
The Weld Star PC40 Dual-Voltage Plasma Cutter with Built-In Compressor is designed for controlled plasma cutting in workshop or site applications. The summary below makes the supply, compatible metals and stated cutting capacity easy to compare.
Machine capability at a glance
| Processes | Plasma cutting |
|---|---|
| Power supply | 110/230V single-phase (dual voltage) |
| Suitable metals | Electrically conductive metals: mild/carbon steel, stainless steel and aluminium; copper, brass and cast iron where supported by the stated torch setup |
| Clean/production cut | 12 mm clean/production cut |
| Maximum severance | 16 mm maximum severance |
Cut capacities are taken from the supplied technical description where detected; verify against the current rating plate/manual.
Full product details
- The PC40 is a compact, lightweight and portable inverter based plasma cutting machine with a built in air compressor that offers excellent operator flexibility.
- Advanced, high efficiency plasma systems that offer flexible portability along with smooth and precise cutting characteristics that is ideal when cutting steel, stainless, copper, cast iron as well as aluminium.
- The Weld Star Infinium plasma range offers the flexibility of switching between the built in compressor or using your own workshop supplied compressed air.
- Clean cut of 12mm and a severance cut of 16mm. Based on mild steel using workshop compressed air.
- Auto pilot restart allows for faster restarting of the pilot arc which allows for uninterrupted cutting of grid or perforated type material.
- Plasma cutting speeds can be up to 1.8 times faster when compared with oxyacetylene cutting.
- Advanced non HF pilot arc ignition via the supplied plasma cutting torch.
- The single carry handle offers excellent portability when working or maneuvering on site or in the workshop.
- User friendly operator control panels.
- Generator friendly (with built-in AVR).
- Optional circle cutting guide kit available.
- 5 year warranty
TECHNICAL DATA – WS-PC40-DV
| Input Voltage | 110V AC ±15% 50/60Hz | 230V AC ±15% 50/60Hz | ||
| Ieff (A) | 20.4 | 16 | ||
| Input Power (kVA) | 3.8 | 5.2 | ||
| Cutting Current Range (A) | 20-30 | 20-40 | ||
| No-Load Voltage (V) | 400 | |||
| Duty Cycle @ 40°C | 30A@35% | 40A@35% | ||
| 22A@60% | 36A@60% | |||
| 20A@100% | 30A@100% | |||
| Internal Air | External Air | Internal Air | External Air | |
| Clean Cut (mm) | 5 | 6 | 10 | 12 |
| Severance Cut (mm) | 6 | 8 | 14 | 16 |
| Min/Max air pressure (external) | 5 Bar (75psi) / 6 Bar (87psi) | |||
| Minimum gas flow (external air) | 4.5CFM 120 Ltr/min | |||
| Efficiency (%) | 85 | |||
| Idle State Power (w) | 11 | |||
| Power Factor | 0.99 | |||
| Protection/Insulation Class | IP23S/H | |||
| Dimensions (LxWxH mm) | 610 X 215 X 420 | |||
| Weight (Kg) | 21 | |||
