MOSA TS200 BS/EL Petrol Welder Generator Site Ready Package ZX35.23202H

Mosa TS200 BS/EL 170A Petrol Engine Driven Welder Generator Site Package (4kVA – 230/110V) – Recoil Start

Powerful, portable, and built for demanding site work, the Mosa TS200 BS/EL combines a high-performance welder with a reliable power generator in one compact unit. Driven by the dependable Honda GX390 petrol engine, this machine delivers a smooth welding current from 20 to 170 amps, giving you precise control for a wide range of electrodes and applications.

Designed for tough environments, the TS200 offers a 170A at 60% duty cycle and 140A at 100%, allowing long welding sessions without interruption. The integrated AC auxiliary power (230V & 110V) means you can run tools, lighting, and equipment while welding — ideal for mobile and on-site use.

Built with safety and durability in mind, the heavy-duty tubular frame protects against knocks and drops, while low oil shutdown safeguards the engine. With IP23 protection, the unit is resistant to water spray and debris, ensuring reliable performance in unpredictable conditions.

The 6.1-litre fuel tank provides up to 3 hours running time at 60% welding output, keeping you productive throughout the day. Compact and easy to move, the optional wheel kit makes transportation effortless.

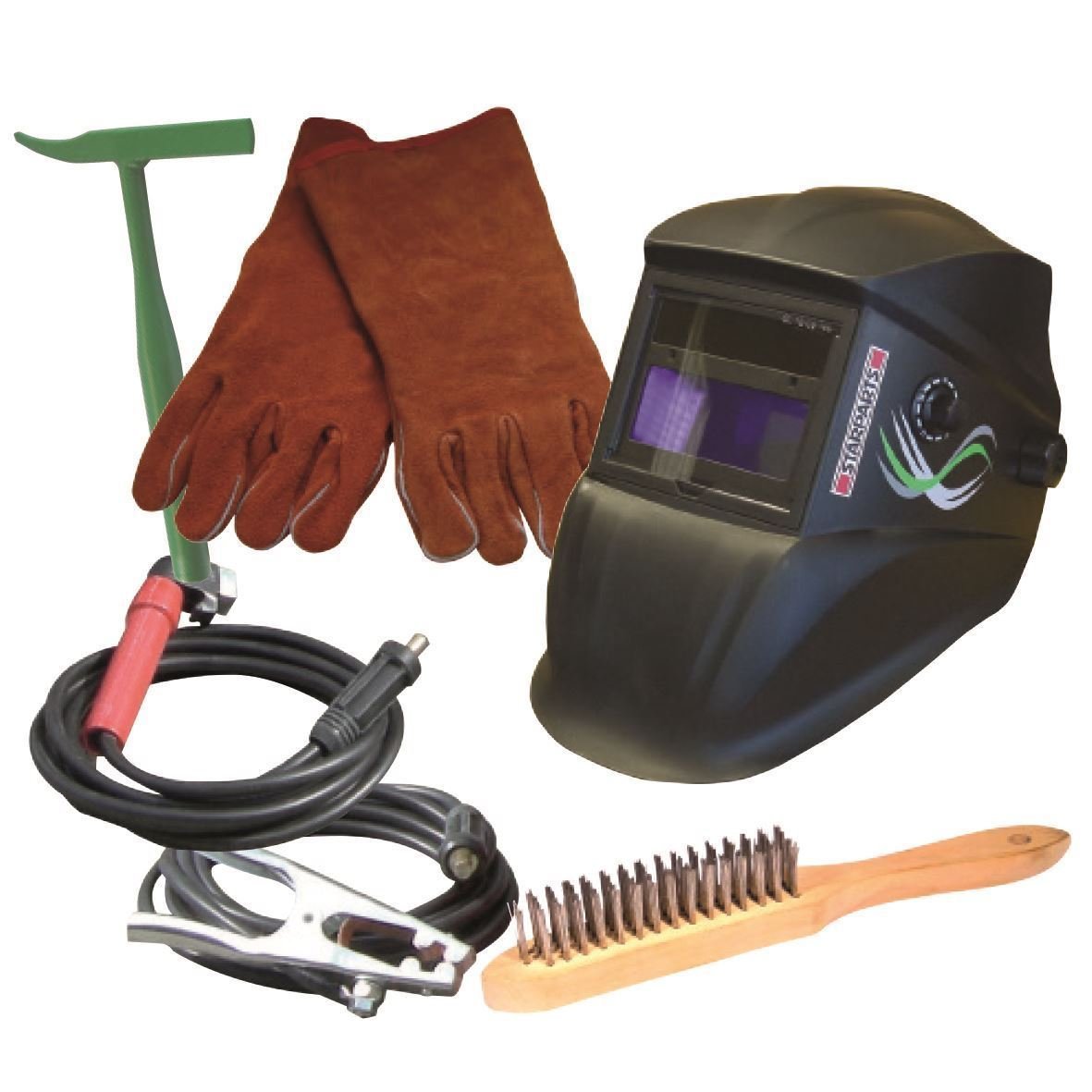

Site Package Includes

• Wheel kit

• Welding lead set

• Auto-darkening welding visor

• Welding gauntlets

• Chipping hammer

• Wire brush

---

Key Features

• Genuine Honda GX390 petrol engine

• Welding range 20 – 170A

• AC auxiliary power 230V & 110V

• Power available while welding

• Low oil level engine shutdown

• Built-in voltmeter

• Stage 5 emissions compliant engine

• Heavy-duty protective frame

• Compact, site-friendly design

• Optional wheel kit for mobility

• IP23 rated for site protection

---

Technical Summary

• Current Range: 20 – 170A

• Duty Cycle: 170A @ 60% / 140A @ 100%

• Open Circuit Voltage: 65V

• Engine: Honda GX390

• Aux Power: 5kVA / 230V / 21.7A – 2.0kVA / 110V

• Noise Level: 73 dB(A) @ 7m

• Fuel Tank: 6.1L

• Running Time: Approx. 3 hours @ 60% welding

• Dimensions: 870 × 525 × 590 mm

• Weight: 106 kg
