Mosa CS 230 YSX-CC/CV

Mosa CS 230 YSX-CC/CV

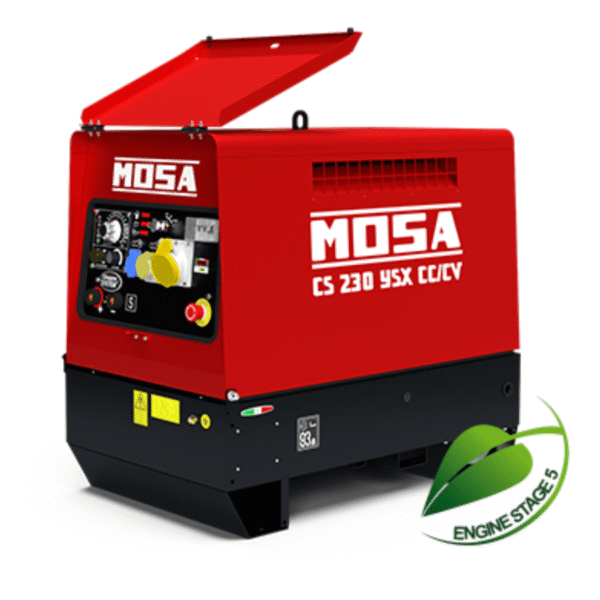

Mosa CS 230 YSX-CC/CV – The CS230 YSX-CC/CV ECO is a high-quality diesel welder generator designed to deliver reliable performance for a variety of welding and power generation needs. Key features include:

• High Frequency Control of Welding Current and Voltage: For precise welding control and enhanced performance.
• Engine Cowling Side: Can be completely opened, facilitating easy maintenance and access to key components.
• Recessed Control Panel: Lockable, housing the sockets and machine for improved security and safety.
• A.C. Generator: Supports both single-phase and three-phase output for versatile power delivery.
• Auxiliary Power Available While Welding: Allows for simultaneous power use while welding, increasing efficiency.
• Power Optimizer (Engine Power Optimization System): Maximizes fuel efficiency by adjusting the engine power based on demand.
• VRD (Voltage Reduction Device): Ensures the safety of the user by lowering the voltage to reduce electrical shock hazards.
• Large Fuel Tank (23L): Supports long periods of operation with fewer refueling stops.
• Meets EC Directives for Noise and Safety: Designed to meet European standards for both noise levels and operational safety.

Specifications:

• Engine:

  • 4 Stroke, Direct Injection, Naturally Aspirated
  • Model: YANMAR L 100 V
  • Stand-By Net Power: 6.3 kWm (8.5 hp)
  • PRP Net Power: 5.7 kWm (7.7 hp)
  • Cylinders/Displacement: 1 / 435 cm³ (0.27 lt.)
  • Bore/Stroke: 86 / 75 mm
  • Compression Ratio: 20:1
  • Speed Governor Type: Mechanical

• Fuel Consumption:

  • 110% (Stand-by Power): 1.9 lt./h
  • 100% to PRP: 1.7 lt./h
  • 75% to PRP: 1.2 lt./h
  • 50% to PRP: 0.8 lt./h

• Cooling System:

  • Total System Capacity: /
  • Fan Air Flow: /

• Lubrication System:

  • Total Oil System Capacity: /
  • Oil Capacity in Sump: 1.6 lt
  • Oil Consumption at Full Load: /

• Exhaust System:

  • Maximum Exhaust Gas Flow: /
  • Max Exhaust Gas Temp: /
  • Maximum Back Pressure: 4.3 kPa (0.043 bar, 440 mmH₂O)
  • External Diameter of Exhaust Pipe: /

• Electrical System:

  • Starter Motor Power: 0.8 kW
  • Battery Charging Alternator Capacity: 15 A
  • Cold Start: 10°C (with cold start aid)

• Air Filter:

  • Type: Dry
  • Combustion Air Flow: /

• Heat Rejected at Full Load:

  • To Exhaust System: /
  • To Water and Oil: /
  • Radiated to Room: /
  • To Charge Cooler: /

The CS230 YSX-CC/CV ECO Diesel Welder Generator is designed for those looking for a compact yet powerful unit that combines welding capability with auxiliary power, making it perfect for job sites requiring flexibility and efficiency. With its eco-friendly and fuel-efficient design, this welder generator is the ideal choice for high-demand tasks.
