Jasic MIG 250 Pulse Inverter Compact 230V

Jasic MIG 250 Pulse Inverter Compact 230V

The Jasic MIG 250 Pulse Inverter Compact 230V is a 250A mig/mag & flux-cored mig / dc/lift tig / mma/arc machine for workshop, fabrication, maintenance or site work. The summary below makes its processes, electrical supply and practical material capacity easy to compare.

Machine capability at a glance

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

Full product details

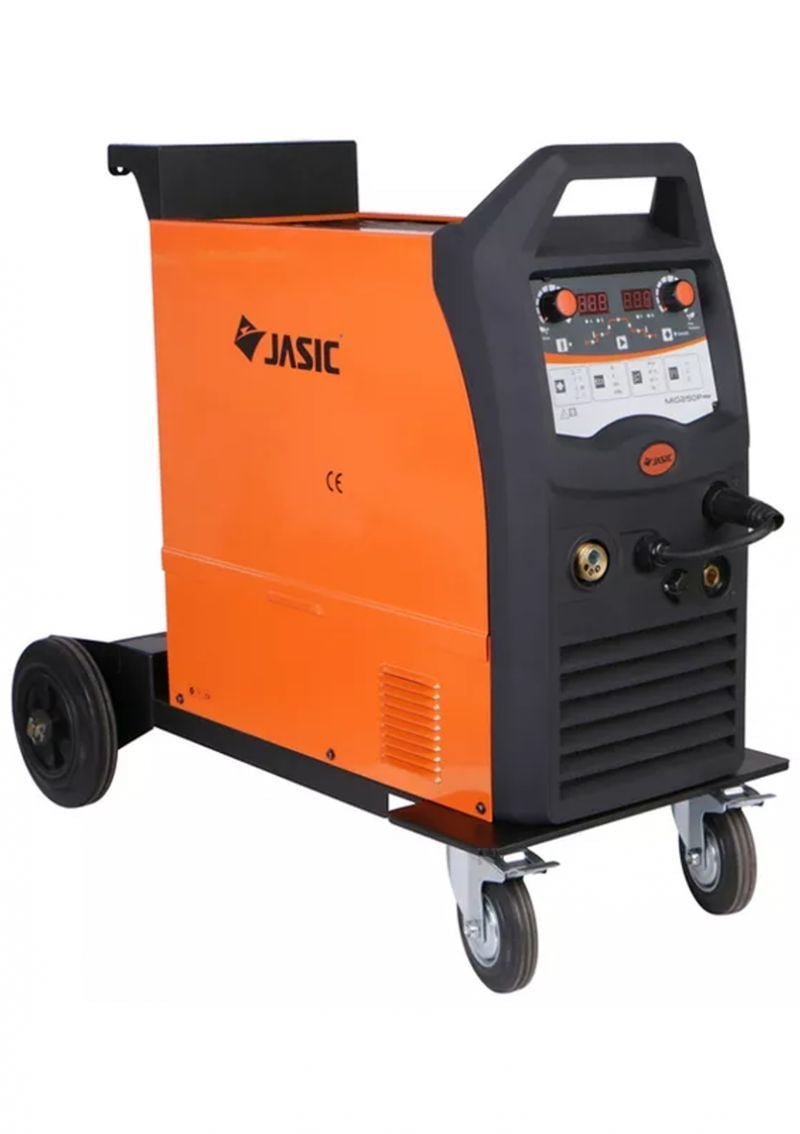

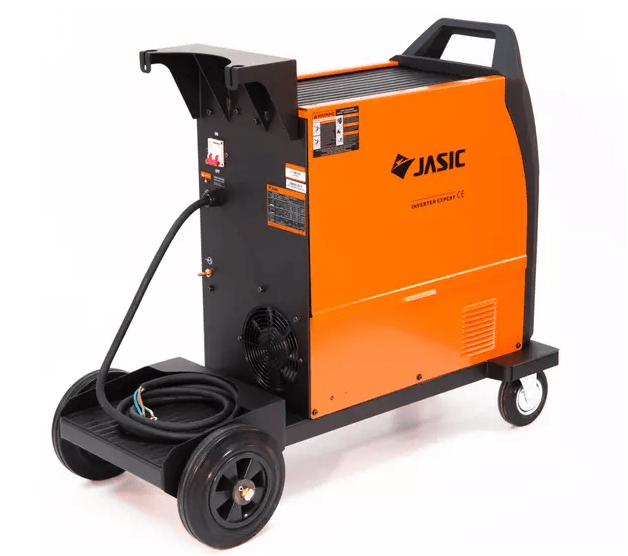

Jasic 250A Compact Pulsed MIG Welder – JM-250P The Jasic inverter MIG welder listed here is a single phase welder running the reliable IGBT inverter inside. This feature packed machine is an addition to the Jasic compact MIG welder range with the optiion of being able to operate “Pulsed” MIG welding while still on a single phase input supply. Compared to the traditional MIG machines this one is a true multi process welder. It gives you the option to work in MIG or in MMA (Stick). If you are working at distance then you also have the option to fit a spool on gun torch which would make it ideal for the aluminium welding jobs that you may have struggled with in the past. Thanks to reversible polarity this welder will also give you the option to run “gas less” and flux cored wire. Jasic 250P MIG Features at a glance Multi Process – MIG, also includes Gasless MIG, MMA, Lift TIG Double Digital Display – Multi-function display plus meets new EN standards Synergic MIG welding parameters allows quick and simple setting based on wire feed speed or material thickness. Trim control to suit your welding technique. Pulsed MIG welding mode provides top quality spatter free weld beads Consitent and precise 4 roll geared wire drive system provides confident welding under all circumstances. High Duty Cycle – No more having to buy a bigger machine to weld for the length of time you need to weld for. Advanced Control Circuitry – Set your amps and volts on an infinite scale. Large Wire Range – Suitable for wire sizes from 0.6mm to 1.2mm. Stable Arc – Better welds. Less Spatter – Reduced clean up times. Burn Back Control – Less chance of burning the wire to the tip. Spool On Gun Option – Improved functionality allowing you to make more money. Wire Inching – Feed the wire without wasting gas. 2T or 4T trigger latching when required MMA “VRD” voltage set to a safe 15Volts Inductance level may be user set On demand fan may be user set / switched on Technical Data Input Voltage AC 230V 50/60 Hz Input Power 9.13kVA Current Range 40-250A (MIG) 10-220A (MMA) MIG Voltage Range 13.5-36V No-Load Voltage MIG 75V MMA VRD=17 VRD TIG =20 Duty Cycle @ 40°C 40% @ 250A Wire Spool Size 15kg and 5kg Type Spools Efficiency 82% Power Factor 0.76 Protection / Insulation Class IP21S/F Dimensions 895x455x760 (mm) Weight 50kg
