Jasic EVO TIG 200P AC/DC PFC Pulse Inverter

Earn 1,295 points with this purchase

£1,295.00£1,554.00 Exc VATInc VAT

SGL-selected packages · Free compatible plug · UK support
SKU: ET-200PACDC Categories: , , Tags: , , , Build your package Unlock savings on selected categories ↓ Brand:
BUILD YOUR SETUP

Complete your machine in three quick steps

Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.

1. Choose your free plug

Match the machine rating plate and your supply. Plug supplied loose. Illustrations are indicative.

2. Choose your package

Category savings apply to eligible full-price products while the machine offer remains in your basket. Your highest qualifying rate applies; discounts do not add together. Package prices are separate and exclude VAT.

3. Add your complete setup to the basket

Machine guide
Processes
AC/DC TIG / MMA/ARC
Power supply
110/230V single-phase (dual voltage)
Duty cycle
TIG: 25%; MMA: 30% at maximum rated output (40°C; output depends on input voltage)
Suitable metals
mild/carbon steel, stainless steel, aluminium, cast iron or dissimilar steels with the correct electrode
Single-pass
TIG: about 0.5–8 mm; MMA: about 2–10 mm
Multi-pass
TIG: up to about 16 mm; MMA: up to about 20 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

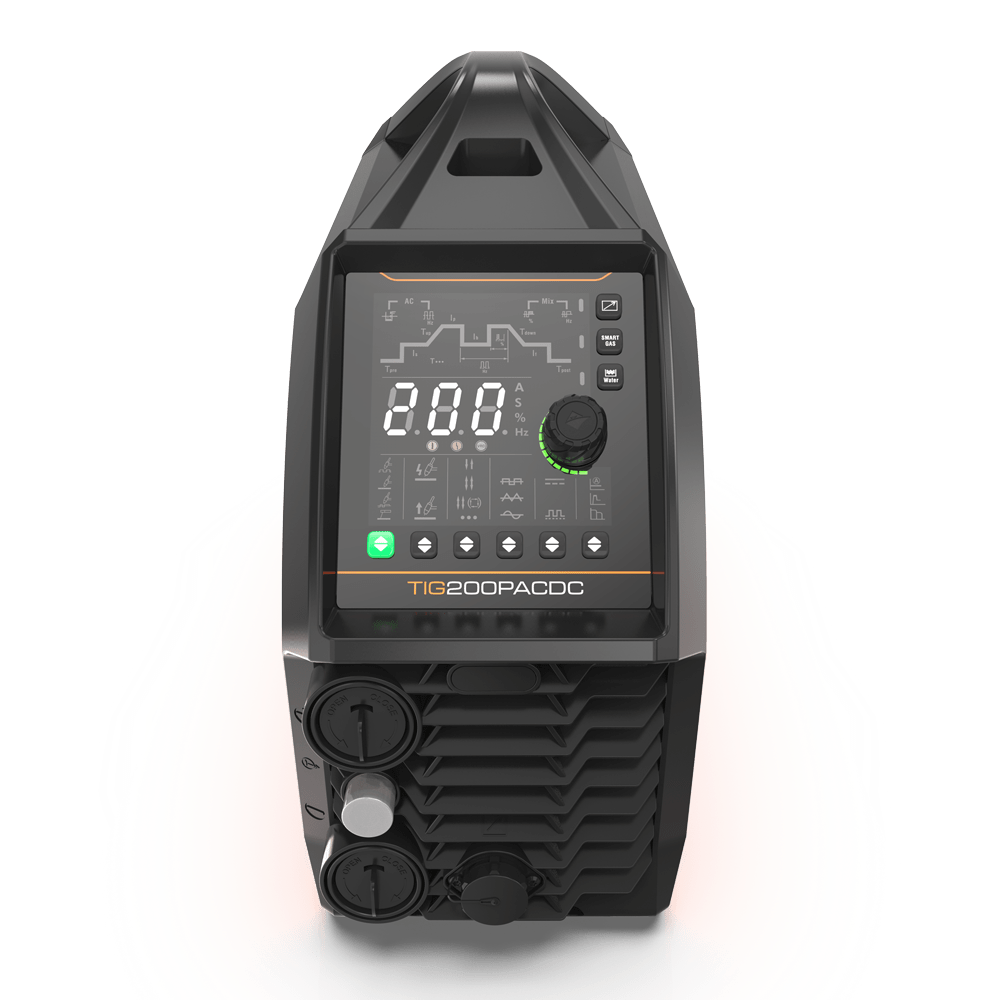

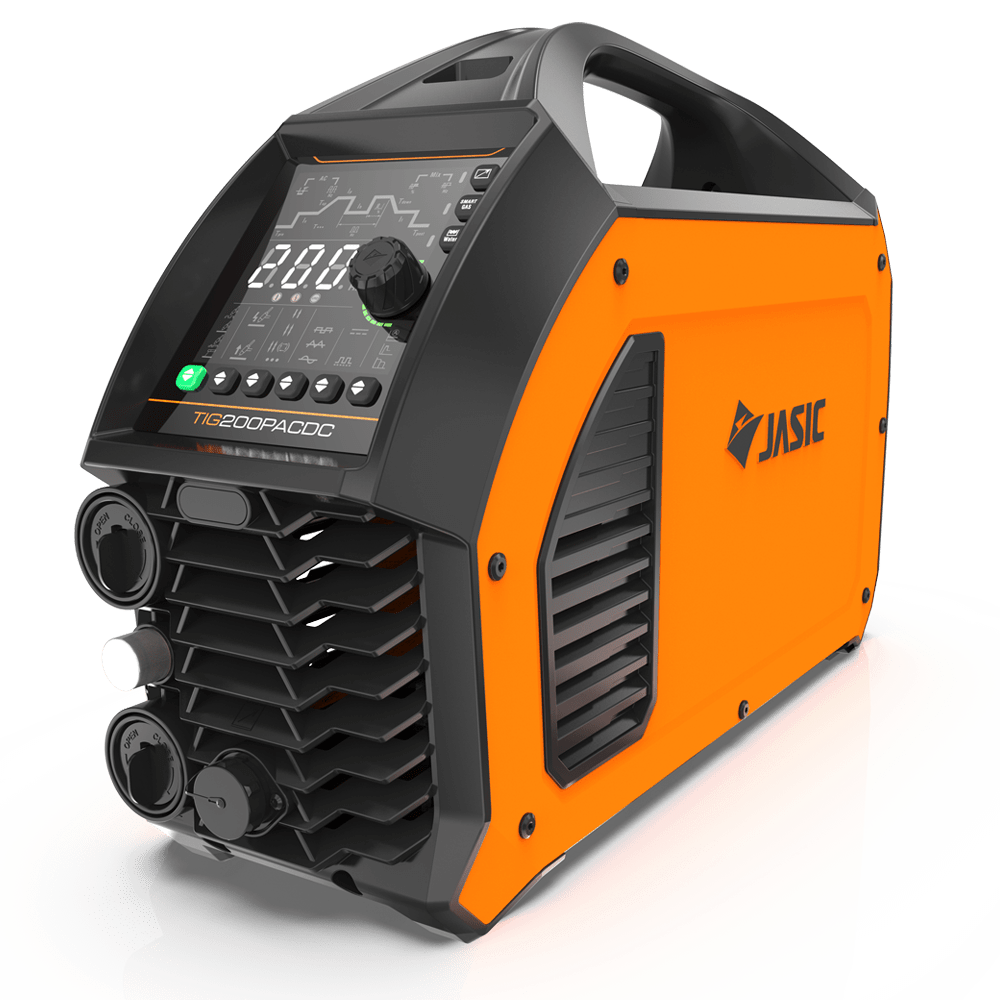

Jasic EVO TIG 200P AC/DC PFC Pulse Inverter

The Jasic EVO TIG 200P AC/DC PFC Pulse Inverter is a 200A ac/dc tig / mma/arc machine for workshop, fabrication, maintenance or site work. The summary below makes its processes, electrical supply and practical material capacity easy to compare.

Machine capability at a glance

Processes AC/DC TIG / MMA/ARC
Power supply 110/230V single-phase (dual voltage)
Suitable metals mild/carbon steel, stainless steel, aluminium, cast iron or dissimilar steels with the correct electrode
Typical single-pass guide TIG: about 0.5–8 mm; MMA: about 2–10 mm
Typical multi-pass guide TIG: up to about 16 mm; MMA: up to about 20 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

Full product details

Jasic EVO TIG 200P AC/DC PFC Pulse Inverter – 5 Year Warranty Package Includes: Inverter Power Source, Leads, TIG Torch 4m, Argon Regulator, Gas Hose Technical Data

Input voltage 95-265V, 50/60 Hz
Voltage @ AC 115V AC 230V
No load voltage 65V
TIG rated input current 32.2A 21.1A
TIG Ieff 16.1A 10.6A
TIG rated input power 3.5kVA 4.7kVA
DC TIG current range 5-160A 5-200A
AC TIG current range 20-160A 20-200A
TIG duty cycle at 40 degrees C 25%
MMA rated input current 34.1A 22.7A
MMA Ieff 18.7A 12.4A
MMA rated input power 3.9kVA 5.6kVA
MMA current range 10-120A 10-160A
MMA duty cycle at 40 degrees C 30%
Efficiency 80%
Power factor 0.95
Idle state power <50W
Protection class IP23S
Insulation class H
Dimensions – LxWxH 490 x 165 x 341mm
Weight 11.9kg
Recommended generator size *Generator must have AVR 5kVA @ 115V 7kVA @ 230V
