Jasic EVO MIG 160 PFC Compact Inverter (MIG Welders)

Earn 879 points with this purchase

£879.00£1,054.80 Exc VATInc VAT

SGL-selected packages · Free compatible plug · UK support
SKU: EM-160C Categories: , , Tags: , , , Build your package Unlock savings on selected categories ↓ Brand:
BUILD YOUR SETUP

Complete your machine in three quick steps

Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.

1. Choose your free plug

Match the machine rating plate and your supply. Plug supplied loose. Illustrations are indicative.

2. Choose your package

Category savings apply to eligible full-price products while the machine offer remains in your basket. Your highest qualifying rate applies; discounts do not add together. Package prices are separate and exclude VAT.

3. Add your complete setup to the basket

Machine guide
Processes
MIG/MAG / DC/Lift TIG / MMA/ARC
Power supply
110/230V single-phase (dual voltage)
Duty cycle
MIG/MMA/TIG: 30% at maximum rated output (40°C; output depends on input voltage)
Suitable metals
mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode
Single-pass
MIG: about 0.8–6 mm; TIG: about 0.5–5 mm; MMA: about 2–8 mm
Multi-pass
MIG: up to about 12 mm; TIG: up to about 10 mm; MMA: up to about 16 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

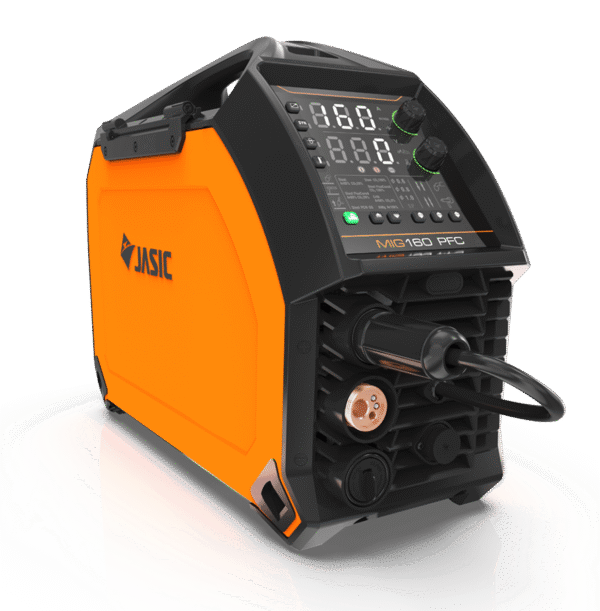

Jasic EVO MIG 160 PFC Compact Inverter (MIG Welders)

The Jasic EVO MIG 160 PFC Compact Inverter (MIG Welders) is a 160A mig/mag / dc/lift tig / mma/arc machine for workshop, fabrication, maintenance or site work. The summary below makes its processes, electrical supply and practical material capacity easy to compare.

Machine capability at a glance

Processes MIG/MAG / DC/Lift TIG / MMA/ARC
Power supply 110/230V single-phase (dual voltage)
Suitable metals mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode
Typical single-pass guide MIG: about 0.8–6 mm; TIG: about 0.5–5 mm; MMA: about 2–8 mm
Typical multi-pass guide MIG: up to about 12 mm; TIG: up to about 10 mm; MMA: up to about 16 mm

Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.

Full product details

Jasic EVO MIG 160 PFC Compact Inverter – 5 Year Warranty Package Includes: Inverter Power Source, 3m MIG Torch, 3m Earth Cable & Clamp, Argon Regulator, Gas Hose. Key Features • Rugged, ergonomic design • ClearVision technology • Intelligent synergic control • Adaptable wide voltage range • Welding engineer mode • Smart Lift TIG • Consistent and efficient MIG spot welding performance • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • Compatible with MIG digital torch and spool gun • LED inside wire feeder cabinet; handy accessory storage slot • ABAP: Active Balancing Air Passage • Fan on demand • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection Technical Data

Input voltage 95-265V, 50/60 Hz
Voltage @ AC 115V AC 230V
No load voltage 67V
MIG rated input current 37.5A 33A
MIG Ieff 14.5A 10.4A
MIG rated input power 2.98kVA 4.22kVA
MIG current range 30-120A 20-160A
MIG wire feed speed 2-11m/min 2-14m/min
MIG spool size 5kg – 200mm Dia.
MIG duty cycle at 40 degrees C 30%
MMA rated input current 25.3A 18.5A
MMA Ieff 13.8A 10.1A
MMA rated input power 2.26kVA 4.19kVA
MMA current range 20-100A 20-140A
MMA duty cycle at 40 degrees C 30%
TIG rated input current 16.4A 14.4A
TIG Ieff 8.9A 7.9A
TIG rated input power 1.79kVA 3.23kVA
TIG current range 5-100A 5-160A
TIG duty cycle at 40 degrees C 30%
Efficiency 84%
Power factor 0.99
Idle state power <50W
Protection class IP23S
Insulation class H
Dimensions – LxWxH 565 x 220 x 415mm
Weight 16kg
Recommended generator size *Generator must have AVR 4.5kVA @ 115V 6.5kVA @ 230V
