Jasic EVO Cut 45 PFC Plasma Inverter with Air Compressor
Earn 1,465 points with this purchase
£1,465.00£1,758.00 Exc VATInc VAT
Complete your machine in three quick steps
Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.
Machine guide
- Processes
- Plasma cutting
- Power supply
- 110/230V single-phase (dual voltage)
- Duty cycle
- 25% at maximum rated output (40°C; output depends on input voltage)
- Suitable metals
- Electrically conductive metals: mild/carbon steel, stainless steel and aluminium; copper, brass and cast iron where supported by the stated torch setup
- Clean cut
- See the technical data for clean-cut capacity
- Severance
- See the technical data for severance capacity
Cut capacities are taken from the supplied technical description where detected; verify against the current rating plate/manual.

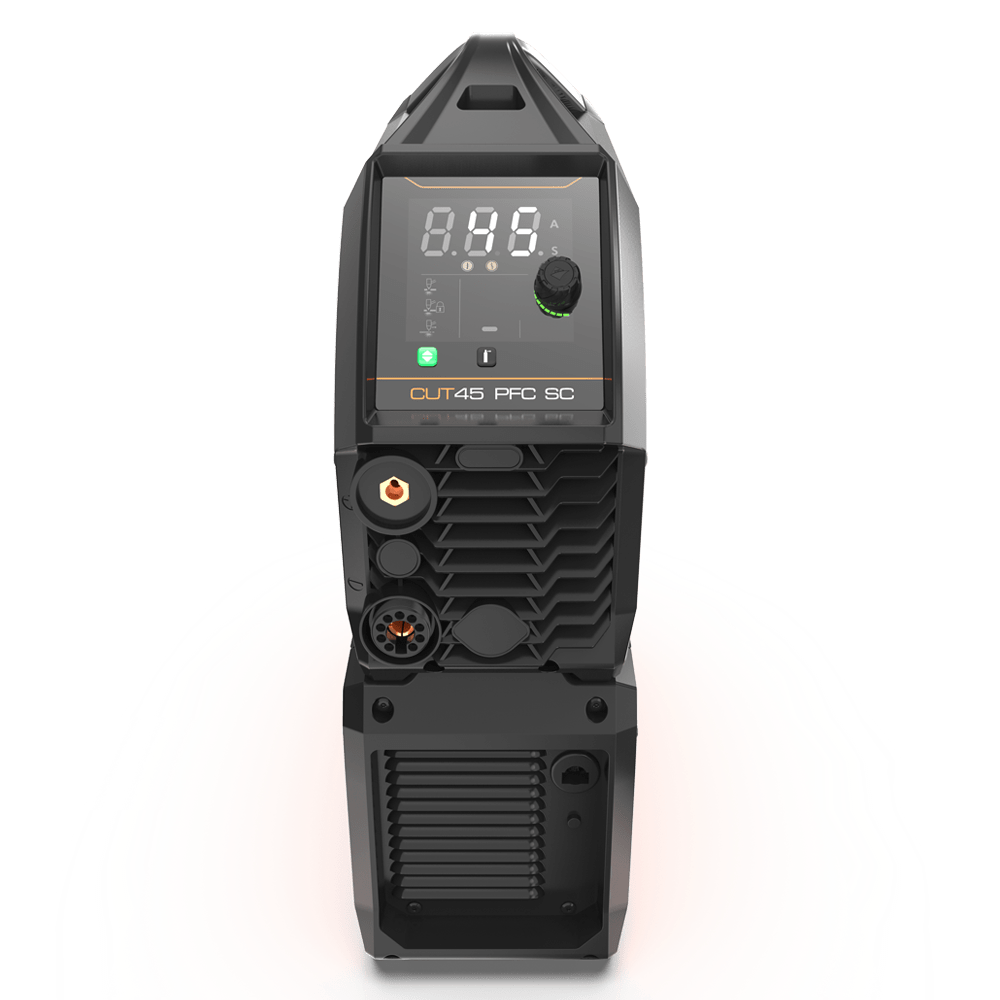

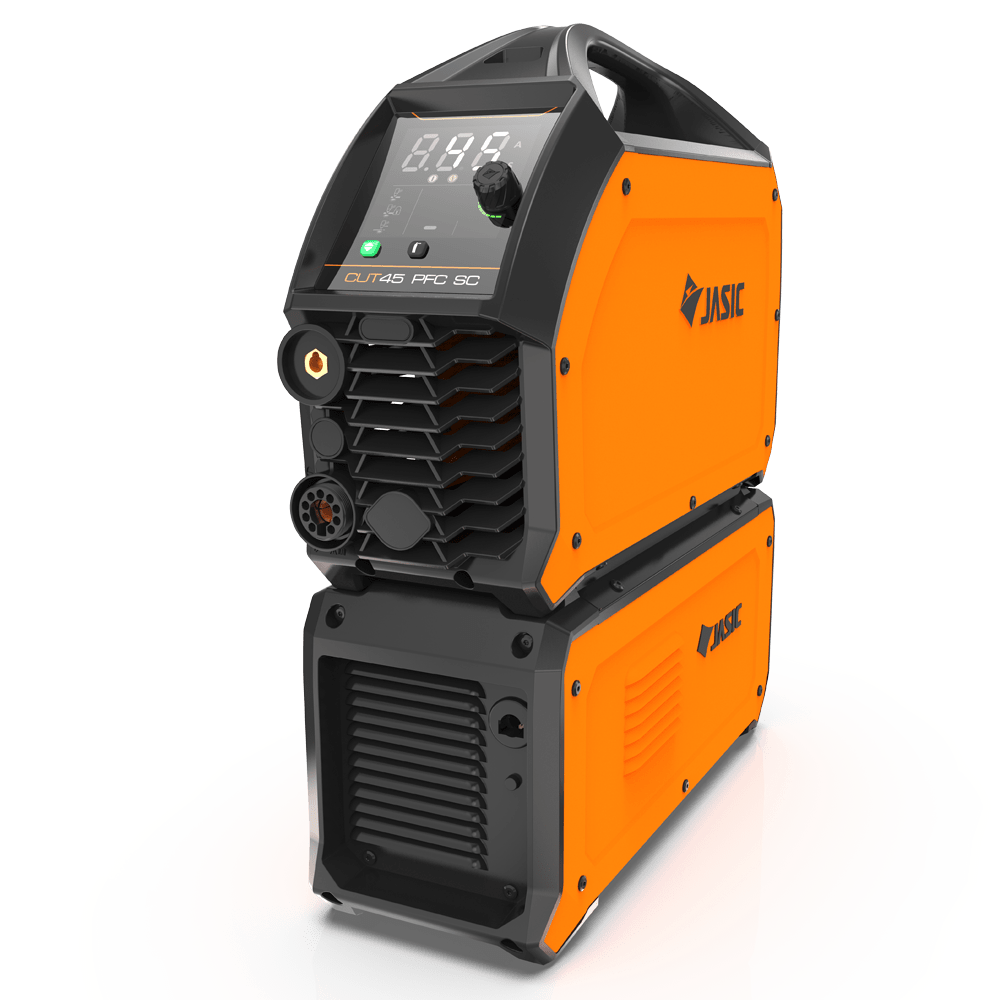

Jasic EVO Cut 45 PFC Plasma Inverter with Air Compressor
The Jasic EVO Cut 45 PFC Plasma Inverter with Air Compressor is designed for controlled plasma cutting in workshop or site applications. The summary below makes the supply, compatible metals and stated cutting capacity easy to compare.
Machine capability at a glance
| Processes | Plasma cutting |
|---|---|
| Power supply | 110/230V single-phase (dual voltage) |
| Suitable metals | Electrically conductive metals: mild/carbon steel, stainless steel and aluminium; copper, brass and cast iron where supported by the stated torch setup |
| Clean/production cut | See the technical data for clean-cut capacity |
| Maximum severance | See the technical data for severance capacity |
Cut capacities are taken from the supplied technical description where detected; verify against the current rating plate/manual.
Full product details

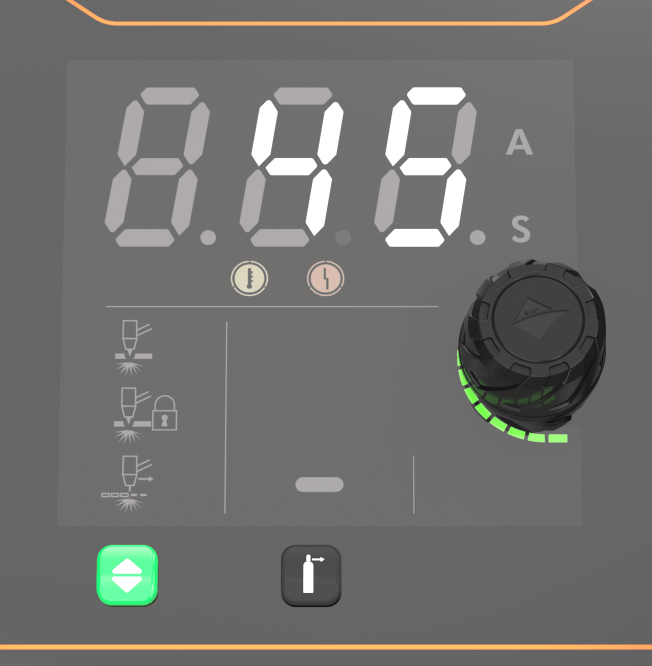

Jasic EVO Cut 45 PFC Plasma Inverter c/w Air Compressor – 5 Year Warranty Package Includes: Plasma Cutting Power Source, LC-30 Air Compressor, Cutting Torch 6m, Earth Return Lead 3m. Key Features • With in-built compressor • Rugged, ergonomic design • ClearVision technology • Adaptable wide voltage range • Welding engineer mode • SurePlasma technology for consistent arc ignition performance with different torch lengths • Mesh cutting, 2T/4T, non HF arc ignition and pilot arc • Gas check, postflow time setting, cutting torch length setting • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • ABAP: Active Balancing Air Passage • Fan on demand • Key power electronic component protection • Overcurrent and overheat protection • TFT screen (optional) Technical Data EP-45SC CUT 45 PFC Input voltage AC95-265V, 50/60 Hz AC 115V AC 230V No load voltage 300V Rated input current 37A 27A Ieff 26A 15A Rated input power 4.3kVA 6.2kVA Current range 20-30A 20-45A Arc starting NHF Rated duty cycle @ 40ºC 25% Clean cut (carbon steel)/@400mm/min 5mm 12mm Severance (carbon steel) 10mm 20mm Efficiency 86% Power factor 0.99 Idle state power <50W Protection class IP23S Insulation class H Dimensions LxWxH 548 x 187 x 558mm Weight 26.5Kg Recommended generator size 6.5kVA 9.5kVA * Generator must have AVR
