Jasic EVO ARC 160 PFC Dual-Voltage MMA Welder with Case & Leads
Earn 365 points with this purchase
£365.00£438.00 Exc VATInc VAT
Complete your machine in three quick steps
Choose your free plug and SGL-picked safety package. Unlock up to 20% off selected categories.
Machine guide
- Processes
- DC/Lift TIG / MMA/ARC
- Power supply
- 110/230V single-phase (dual voltage)
- Duty cycle
- MMA/TIG: 25% at maximum rated output (40°C; output depends on input voltage)
- Suitable metals
- mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode
- Single-pass
- TIG: about 0.5–5 mm; MMA: about 2–8 mm
- Multi-pass
- TIG: up to about 10 mm; MMA: up to about 16 mm
Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.
Jasic EVO ARC 160 PFC Dual-Voltage MMA Welder with Case & Leads
The Jasic EVO ARC 160 PFC Dual-Voltage MMA Welder with Case & Leads is a 160A dc/lift tig / mma/arc machine for workshop, fabrication, maintenance or site work. The summary below makes its processes, electrical supply and practical material capacity easy to compare.
Machine capability at a glance
| Processes | DC/Lift TIG / MMA/ARC |
|---|---|
| Power supply | 110/230V single-phase (dual voltage) |
| Suitable metals | mild/carbon steel, stainless steel, copper/brass, cast iron or dissimilar steels with the correct electrode |
| Typical single-pass guide | TIG: about 0.5–5 mm; MMA: about 2–8 mm |
| Typical multi-pass guide | TIG: up to about 10 mm; MMA: up to about 16 mm |
Practical selection guide, not a guaranteed manufacturer limit. Capacity changes with process, metal, joint design, preparation, consumables, position, duty cycle and operator technique; figures assume maximum rated output on the appropriate supply.
Full product details

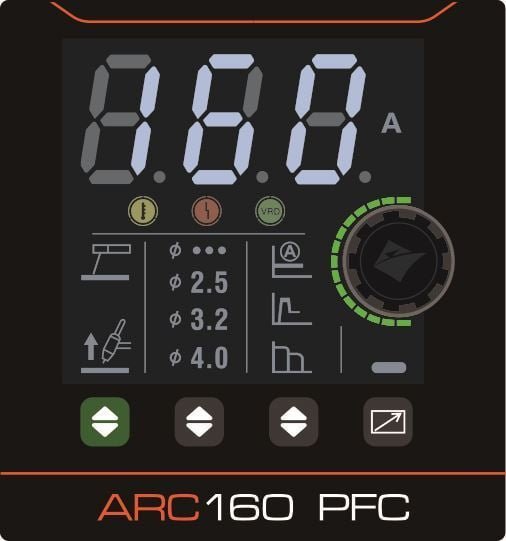

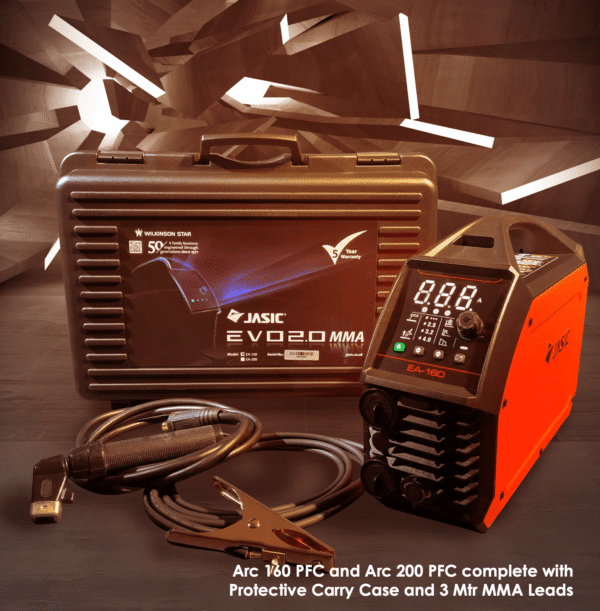

This is not just a standard stick welder by any means. If you are looking for a professional MMA unit then this is the one for you. Not only does it come with a robust case and 3m lead set it is also a machine that comes as standard with PFC. This means that it is perfect for site work on longer extension cables or indeed if you have to work with it on 110V you can. Combine this with a 5 year warranty straight out of the box and the rather handy features of the optional wired remote or wireless amperage adjustment it really stands out above the others in the market. The design of the machine has been very well thought out and this ergonomic design lends itself beautifully to the ClearVision technology provided in front screen panel. Where normally a stick welder is just one control the EA-160 gives you an intelligent synergic control to make welding even easier and if you do want to control things manually you gain adjustable hot start and arc force controls too. Technical Data
| Input voltage | 95-265V, 50/60 Hz | |
| Voltage @ | AC 115V | AC 230V |
| No load voltage | 78V | |
| MMA rated input current | 28.7A | 22.6A |
| MMA Ieff | 14.4A | 11.3A |
| MMA rated input power | 3.3kVA | 5kVA |
| MMA current range | 20-110A | 20-160A |
| MMA duty cycle at 40 degrees C | 25% | |
| TIG rated input current | 23.3A | 14.0A |
| TIG Ieff | 11.7A | 7A |
| TIG rated input power | 2.2kVA | 3.2kVA |
| TIG current range | 10-120A | 10-160A |
| TIG duty cycle at 40 degrees C | 25% | |
| Efficiency | 86% | |
| Power factor | 0.99 | |
| Idle state power | MMA: 38.2W TIG: 7W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions – LxWxH | 413x150x311mm | |
If running on a generator then please ensure the generator has AVR.
