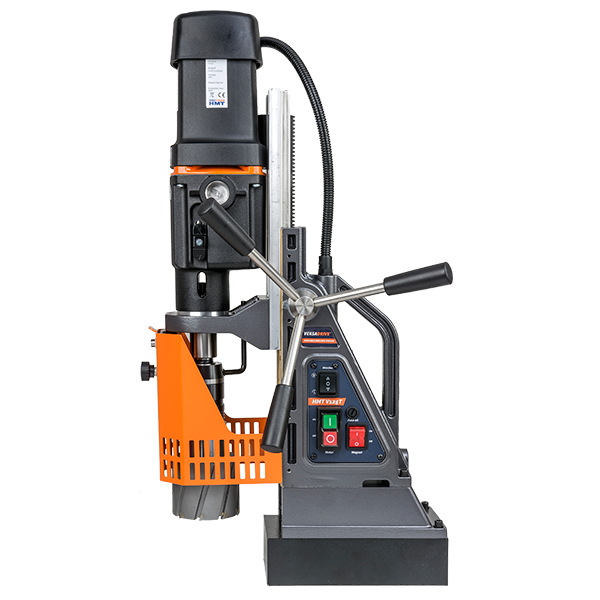

HMT Steelbor V125T Magnetic Drill Pro Kit 110 Volt

HMT Steelbor V125T Magnetic Drill 110V

The HMT Steelbor V125T 110V is a heavy-duty portable magnetic drill designed for large diameter drilling, tapping, broaching and countersinking applications. Built for market-leading performance, the V125T delivers powerful cutting capability for demanding industrial, structural and fabrication environments.

With a maximum TCT cutter capacity of 125mm, the Steelbor V125T is ideal for heavy-duty holemaking in steel. Its powerful forward/reverse, variable speed, multi-geared Eibenstock motor provides all-day broaching performance and tapping capability up to M32 for both through and blind holes.

Advanced British electromagnets deliver exceptional magnetic hold for improved safety and stability during operation. The machine is supplied with a coolant-fed arbor and features an MT3 spindle with a 19.05mm / 3/4″ Weldon arbor, making it suitable for professional drilling and broaching setups.

Key Features

• 110V heavy-duty portable magnetic drill
• Maximum TCT cutter capacity: 125mm
• Twist drill capacity up to 32mm
• Maximum tapping capacity: M32
• Suitable for through-hole and blind-hole tapping
• Maximum countersinking capacity: 65mm
• Powerful forward/reverse variable speed multi-geared motor
• Designed for all-day broaching performance
• Advanced British electromagnets for enhanced magnet hold
• Strong magnetic adhesion of 2200kg
• MT3 spindle for heavy-duty tooling
• Supplied with 19.05mm / 3/4″ Weldon arbor
• Gravity oil-fed coolant system
• Suitable for heavy industrial, structural and fabrication work
• 2 year warranty when registered

Typical Applications

• Heavy-duty structural steel drilling
• Large diameter broaching
• Industrial fabrication
• Site installation work
• Tapping up to M32
• Through-hole and blind-hole tapping
• Countersinking applications
• Engineering and maintenance work

Technical Specification

• Voltage: 110V
• Cutter Size Range: 12?125mm TCT
• Maximum Cutter Capacity: 125mm TCT
• Twist Drill Capacity: 32mm
• Maximum Tap Capacity: M32
• Maximum Countersinking: 65mm
• Length: 345mm
• Width Including Handles: 240mm
• Height Min-Max: 470?750mm
• Stroke: 280mm
• Weight: 25kg
• Magnet Size: 220 x 115mm
• Magnetic Adhesion: 2200kg
• Motor Power: 1800W
• Total Power: 1900W
• No Load Speed: 60?140 / 100?220 / 140?310 / 210?490 RPM
• Spindle: MT3
• Arbor: 19.05mm / 3/4″ Weldon
• Takes Chuck: Yes
• Coolant System: Gravity oil-fed
• Warranty: 2 years when registered

The HMT Steelbor V125T 110V Magnetic Drill is a professional choice for users who need maximum portable drilling power, large cutter capacity and reliable tapping performance for heavy-duty steelwork.
