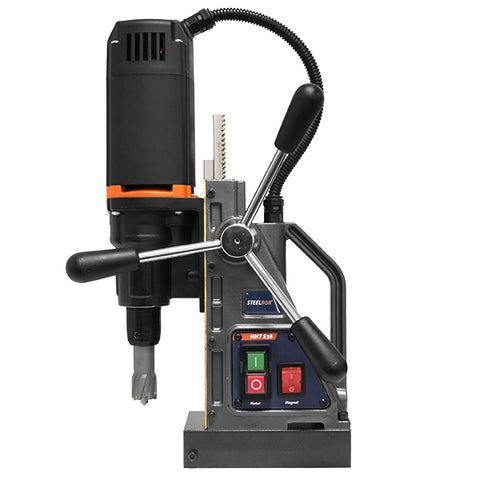

HMT S36 Steelbor Magnetic Drill Machine Kit, 110v

HMT Steelbor S36 Compact Magnetic Drill 110V

The HMT Steelbor S36 110V is a compact, powerful magnetic drill designed for fast, accurate holemaking in structural steel and demanding site environments. Built as HMT?s flagship compact mag drill, the S36 delivers excellent cutting depth, strong magnetic adhesion and reliable performance in a portable, easy-to-handle design.

With a maximum cutting depth of 110mm, the Steelbor S36 is ideal for deep broaching, countersinking and access-critical jobs. Its high-performance 1050W Eibenstock motor provides smooth, efficient cutting, while the lightweight 10kg body makes it easier to transport and position on site.

The S36 is compatible with standard Weldon shank broach cutters and works perfectly with VersaDrive quick-change tooling, giving users excellent flexibility for drilling, countersinking and general holemaking applications.

Key Features

• Compact 110V magnetic drill for site and workshop use
• Maximum TCT cutter capacity: 36mm
• Maximum HSS cutter capacity: 32mm
• 110mm maximum cutter length for deep broaching
• Suitable for drilling up to 36mm diameter in structural steel
• High-performance 1050W motor for fast, smooth cutting
• Lightweight 10kg design for easier transport and access work
• 3/4″ Weldon spindle for standard broach cutter compatibility
• Compatible with VersaDrive quick-change tools
• Suitable for drilling and countersinking applications
• Strong magnetic adhesion of 1015kg
• Supplied with metal safety guard, restraint strap and handles
• 2 year warranty when registered

Typical Applications

• Structural steel drilling
• Site drilling and installation work
• Fabrication workshops
• Deep broaching applications
• Countersinking work
• Access-critical drilling jobs
• Engineering and maintenance applications

Technical Specification

• Voltage: 110V
• Maximum TCT Cutter Capacity: 36mm
• Maximum HSS Cutter Capacity: 32mm
• Maximum Cutter Length: 110mm
• Twist Drill Capacity: 13mm
• Maximum Tapping Capacity: N/A
• Maximum Countersinking: 25mm
• Length: 259mm
• Width Including Handles: 156mm
• Height Min-Max: 348?495mm excluding cable gland
• Stroke: 147mm
• Weight: 10kg
• Magnet Size: 160 x 80mm
• Magnetic Adhesion: 1015kg
• Motor Power: 1050W
• No Load Speed: 800 RPM
• Spindle: 3/4″ Weldon
• Arbor: Integral 3/4″ Weldon
• Coolant System: Optional extra
• Warranty: 2 years when registered

The HMT Steelbor S36 110V Compact Magnetic Drill is a strong choice for users who need a portable, site-ready mag drill with deep cutting capacity, excellent performance and full compatibility with standard broach cutters and VersaDrive tooling.
