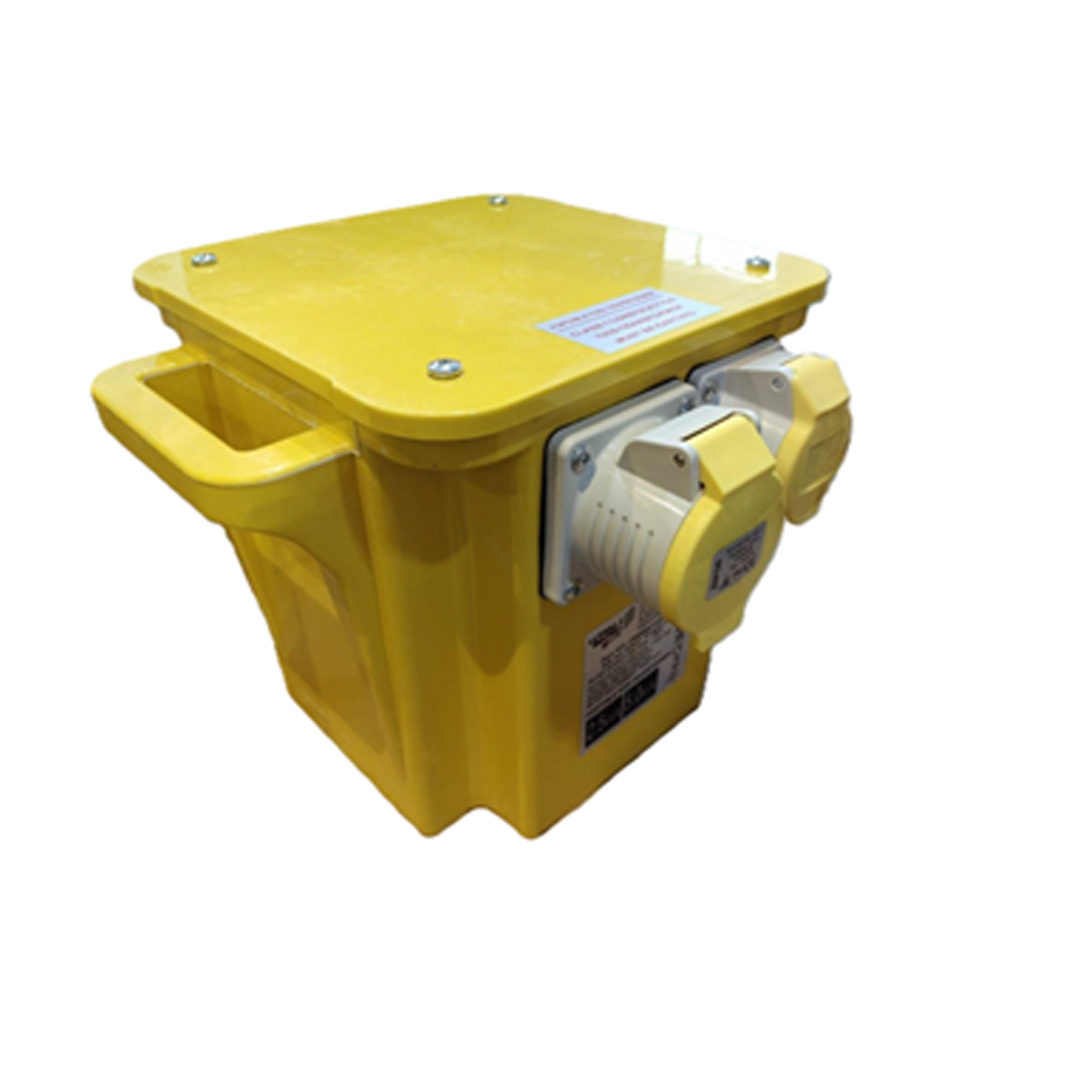

Carroll & Meynell 5kVA Portable Site Transformer – CM5000/210/PT/LITE

Power your 110V tools and site equipment with the Carroll & Meynell CM5000/210/PT/LITE Portable Transformer. Designed for construction, maintenance and workshop use, it converts a 230V supply to 110V centre-tapped earth output, with a 5kVA intermittent rating for tool operation.

A tough glass-reinforced polyester (GRP) enclosure provides protection for everyday site handling, while thermal overload protection helps protect the transformer against overheating. With two 16A sockets and one 32A socket, it offers practical connection options for compatible equipment.

Key Features

• 5kVA intermittent output: For operating compatible 110V tools within the transformer’s rated duty cycle.
• 230V to 110V conversion: Centre-tapped earth output configured as 55-0-55V.
• Three output sockets: Two 16A and one 32A 110V socket.
• Durable GRP enclosure: Designed for demanding working environments.
• IP44 protection: Protection against solid objects larger than 1mm and splashing water.
• Thermal overload protection: Helps protect against excessive operating temperatures.
• 1.5m mains lead: H07RN-F 3G2.5mm² cable.

Technical Specifications

Specification	Details
Brand	Carroll & Meynell
Model	CM5000/210/PT/LITE
Input voltage	230V AC
Output voltage	110V AC centre-tapped earth
Output configuration	55-0-55V
Intermittent rating	5kVA
Output sockets	2 × 16A and 1 × 32A, 110V
Enclosure	Glass-reinforced polyester (GRP)
Ingress protection	IP44
Overload protection	Thermal
Mains lead	1.5m H07RN-F 3G2.5mm²

Selecting your transformer: The 5kVA rating is intermittent, not continuous. Check the unit’s rating plate, permitted duty cycle and input connection requirements against the equipment you intend to power. Combined loads must remain within the transformer and supply ratings.
