BOC High Pressure Multi-Stage Nitrogen Regulator, Nitrogen 41 bar

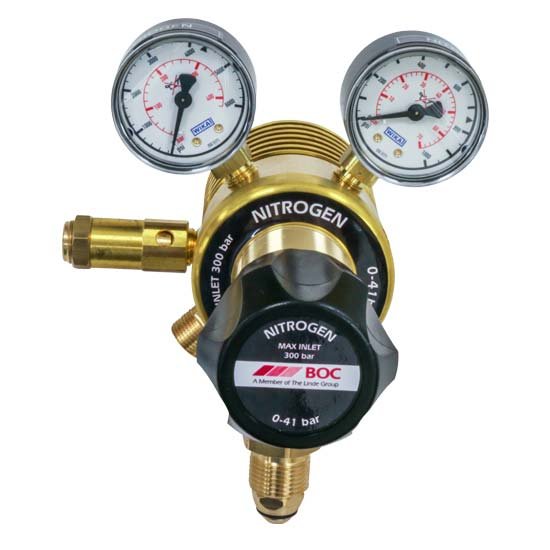

BOC High Pressure 42 Bar Multi-Stage Nitrogen Regulator

The BOC High Pressure Multi-Stage Nitrogen Regulator is designed for precise and stable control of very high-pressure nitrogen systems. Built for demanding industrial applications, this regulator provides constant and accurate gas delivery without the need for continuous readjustment.

With a large diaphragm surface area, the regulator delivers accurate performance up to 42 bar. Its multi-stage design helps maintain steady outlet pressure, making it ideal for high-pressure testing and high-flow nitrogen applications.

The heavily finned first-stage bonnet is designed to help dissipate cooling caused by gas pressure reduction, especially during high-flow use. This makes the regulator well suited to professional environments where reliable nitrogen pressure control is essential.

Key Features

• High-pressure multi-stage nitrogen regulator
• Designed for precise control of high-pressure nitrogen systems
• Provides constant and accurate delivery pressure
• Large diaphragm surface area for improved pressure control
• Suitable for delivery pressures up to 42 bar
• Heavily finned first-stage bonnet for improved cooling dissipation
• Ideal for high-flow nitrogen applications
• Suitable for high-pressure testing of vessels and cylinders
• Fitted with 2 gauges for inlet and outlet pressure monitoring

Typical Applications

• High-pressure testing of pressure vessels
• Fire extinguisher body testing
• Hydraulic cylinder testing
• High-flow nitrogen supply
• Industrial pressure testing applications

Technical Details

• Gas: Nitrogen
• Use: High pressure multi-stage regulator with 2 gauges
• Delivery Pressure: 0–42 bar / 594psi
• Maximum Inlet Pressure: 300 bar
• Inlet Connection: BS341 No.3, 5/8″ BSP RH
• Outlet Connection: 3/8″ BSP RH
