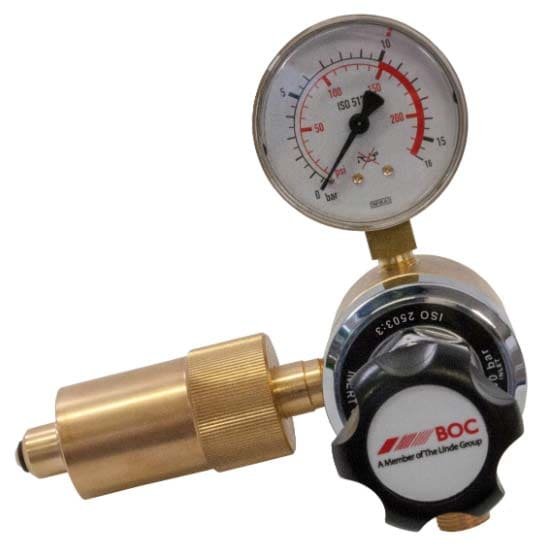

BOC EVOS Multi Stage Inert Regulator 10bar

EVOS Multi-Stage Inert Gas Regulator for 300 Bar Cylinders

The EVOS Multi-Stage Inert Gas Regulator is designed for use with high-pressure 300 bar EVOS cylinders. Suitable for inert gases such as argon and nitrogen, this regulator provides stable and accurate outlet pressure for professional gas control applications.

It is ideal for use where consistent outlet pressure is required, including quality cutting applications, laboratory systems, precision machine cutting and high-flow gas supply. The multi-stage design helps maintain reliable pressure delivery, even as cylinder pressure decreases during use.

Built with a strong barstock brass body for maximum durability, the first stage reduces full cylinder pressure by approximately 90% before final pressure regulation. This makes it a dependable choice for demanding workshop, site and industrial environments.

Key Features

• Multi-stage regulator for inert gases
• Suitable for argon, nitrogen and other compatible inert gases
• Designed for use with 300 bar EVOS cylinders
• Provides stable and accurate outlet pressure
• Ideal for quality cutting, laboratory systems and precision machine cutting
• Suitable for high or stable flow applications
• Strong barstock brass body for maximum strength
• First stage reduces full cylinder pressure by approximately 90%
• Side-entry configuration
• Pressure gauge manufactured according to ISO 5171

Technical Details

• Gas: Inert gases, such as argon and nitrogen
• Use: Multi-stage regulator for 300 bar EVOS cylinders
• Inlet Connection: BS341 No.30, NEVOC
• Temperature Range: -20°C to +60°C
• Leak Rate: Max 10cm³/h according to ISO 9090
• Weight: 2.3kg
• Body Material: Barstock brass
• First Stage Bonnet: Brass
• Second Stage Bonnet: Zama 15
• Diaphragm: Neoprene
• Valve Seat: PTFE / Teflon
• Pressure Gauge: According to ISO 5171
