7 PIECE FILLET WELD GAUGE SET (INCH)

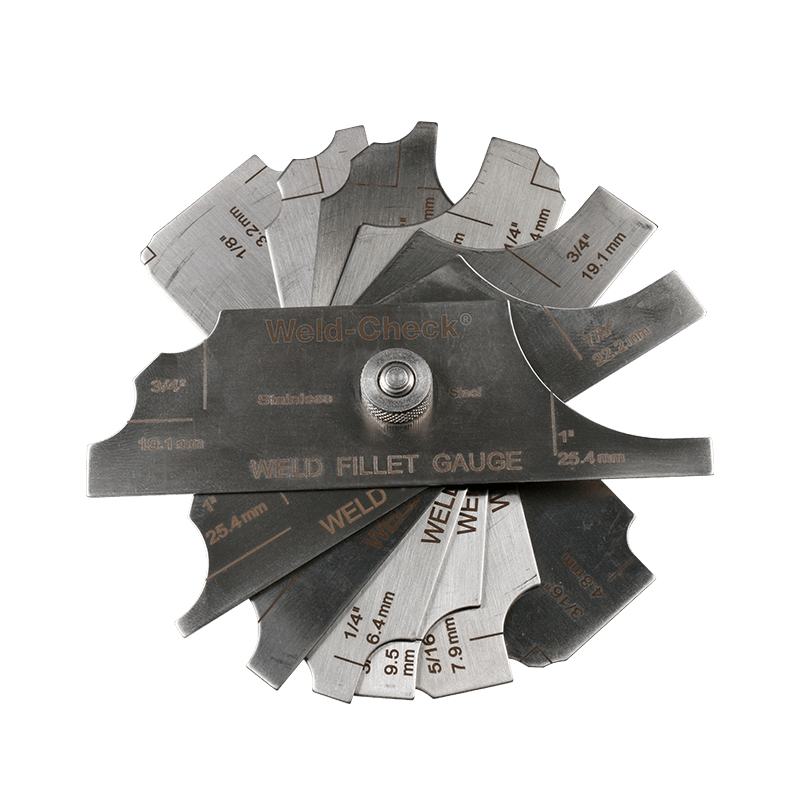

The Master Gage® 7 Piece Fillet Weld Gauge Set (Inch) MG-FILL is a precision-engineered inspection tool designed for accurate measurement of weld fillet sizes in professional welding, fabrication, and quality control applications. Built for durability, accuracy, and ease of use, this comprehensive set allows welders and inspectors to assess fillet leg length, weld throat size, convexity (capping), undercut depth, and joint preparation angles from 0° to 60°, ensuring full compliance with welding standards and specifications.

Manufactured from high-grade SUS 304 stainless steel, each gauge is rust-resistant, deburred for smooth edges, and laser-etched for permanent, easy-to-read markings. The set measures in inch graduations from 1/8″ to 1″ (3.2mm to 25.4mm), providing consistent, repeatable results for workshop and on-site inspection work.

Supplied in a durable vinyl pocket case with a snap lock, this compact and portable set offers reliable performance and protection for daily professional use.

Key Features

• Model: MG-FILL (7 Piece Fillet Weld Gauge Set – Inch)

• Measurement Range: 1/8″ to 1″ (3.2mm to 25.4mm)

• Functions: Measures fillet leg length, weld throat size, convexity (capping), undercut depth, and joint angles (0°–60°)

• Material: SUS 304 stainless steel – corrosion-resistant and precision-machined

• Markings: Laser-etched for long-term readability

• Edges: Deburred for smooth, safe, and accurate use

• Case: Supplied in a protective vinyl pocket case with snap lock

• Measurement System: Imperial (inch)

• Applications: Ideal for professional weld inspection, alignment checks, and fabrication QA
