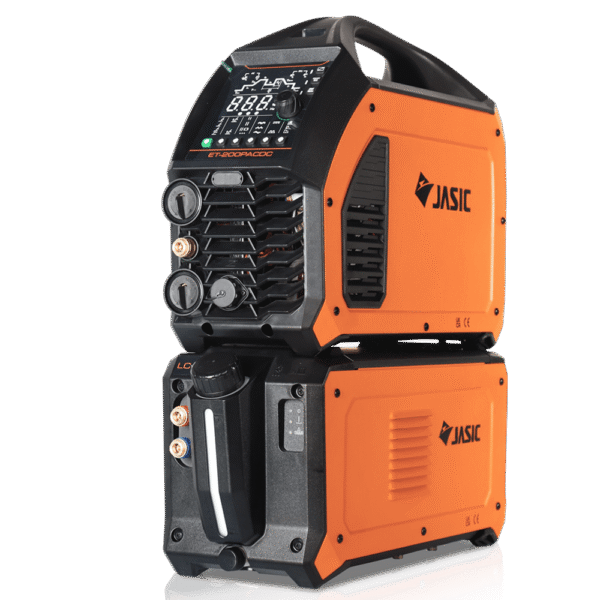

Jasic EVO TIG 200P AC/DC PFC Pulse Inverter (Water Cooled)

Jasic EVO TIG 200P AC/DC PFC Pulse Inverter (Water Cooled)

Jasic EVO TIG 200P AC/DC PFC Pulse Inverter (Water Cooled) – 5 Year Warranty

Package Includes: AC/DC Power Source, Water Cooler, WC TIG Torch 4m, Earth Return Lead, Argon Regulator, Gas Hose

Key Features
• Rugged, ergonomic design
• ClearVision technology
• Adaptable wide voltage range
• HF stabilising technology
• Dash-Arc
• Smart Lift TIG
• Full featured pulse TIG parameters
• Multiple AC waveforms
• Mixed waveform, mixed waveform frequency,
mixed waveform duty cycle
• Flexible remote control solutions (optional)
• Power factor correction (PFC), generator friendly
• Quick factory reset; auto sleep mode
• Water cooled option available
• ABAP: Active Balancing Air Passage
• Smart gas for optimised shielding gas consumption
• On demand fan
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection

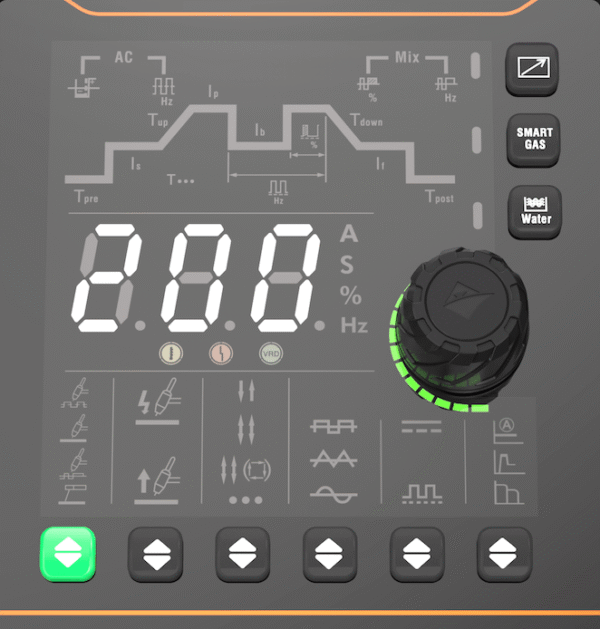

• TFT screen (optional)

Technical Data
ET-200PACDC-WC TIG 200P ACDC PFC WC
Input voltage AC95-265V, 50/60 Hz
AC 115V AC 230V
No load voltage 65V
TIG
Rated input current 32.2A 21.1A
Ieff 16.1A 10.6A
Rated input power 3.5kVA 4.7kVA
Current range DC: 5-160A
AC: 20-160A
DC: 5-200A
AC: 20-200A
Rated duty cycle @ 40ºC 25%
MMA
Rated input current 34.1A 22.7A
Ieff 18.7A 12.4A
Rated input power 3.9kVA 5.6kVA
Current range 10-120A 10-160A
Rated duty cycle @ 40ºC 30%
Efficiency 80%
Power factor 0.95
Idle state power <50W
Protection class IP23S
Insulation class H
Dimensions LxWxH 527 x 182 x 565 mm
Weight 20.3Kg
Recommended generator size 5kVA 7kVA

* Generator must have AVR
