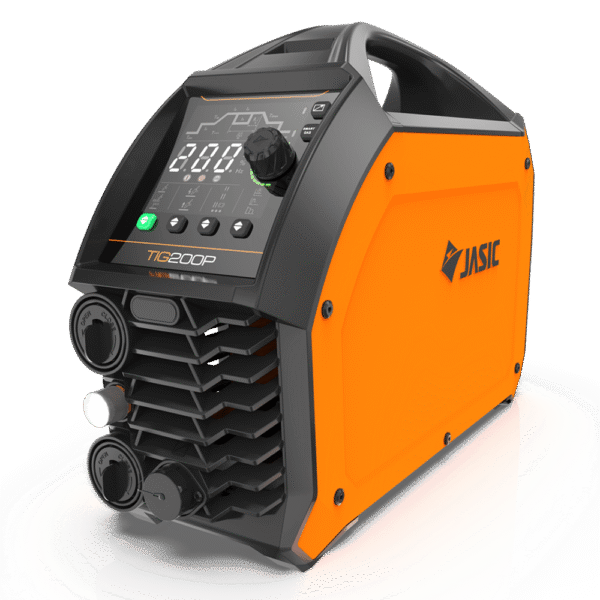

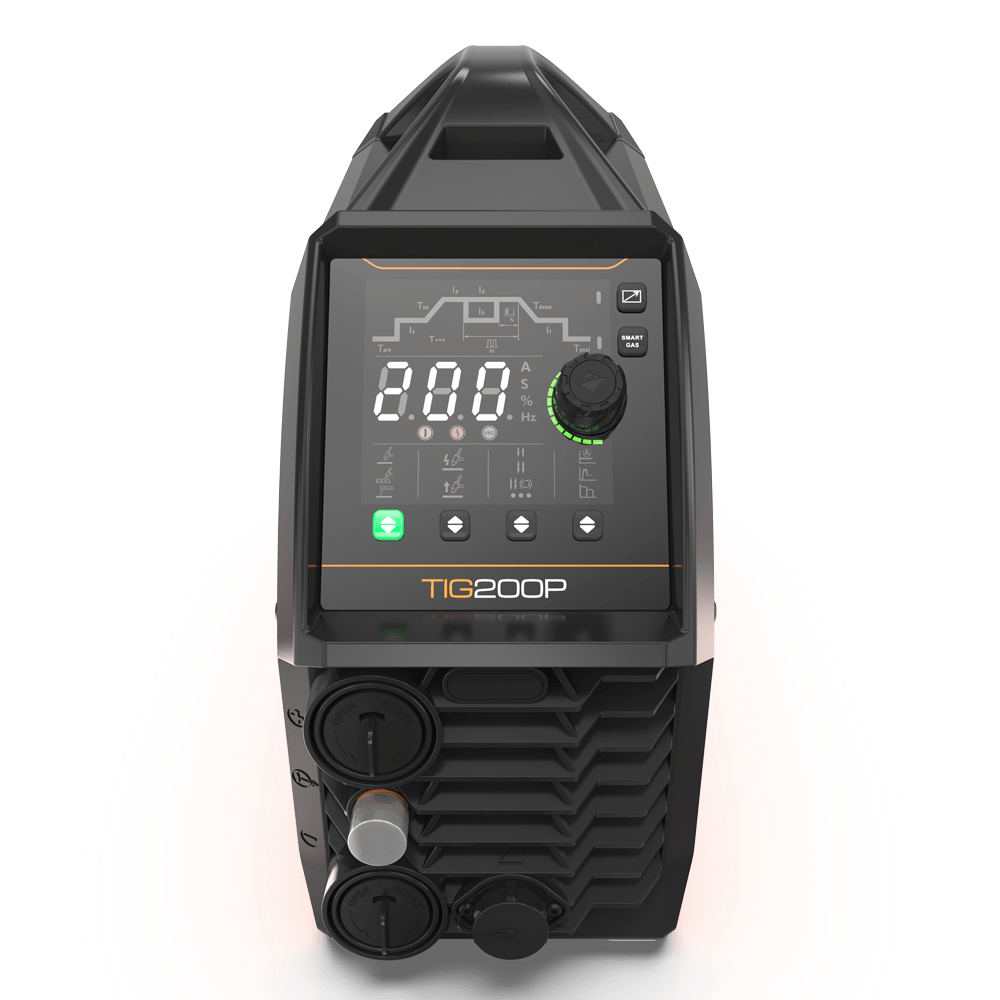

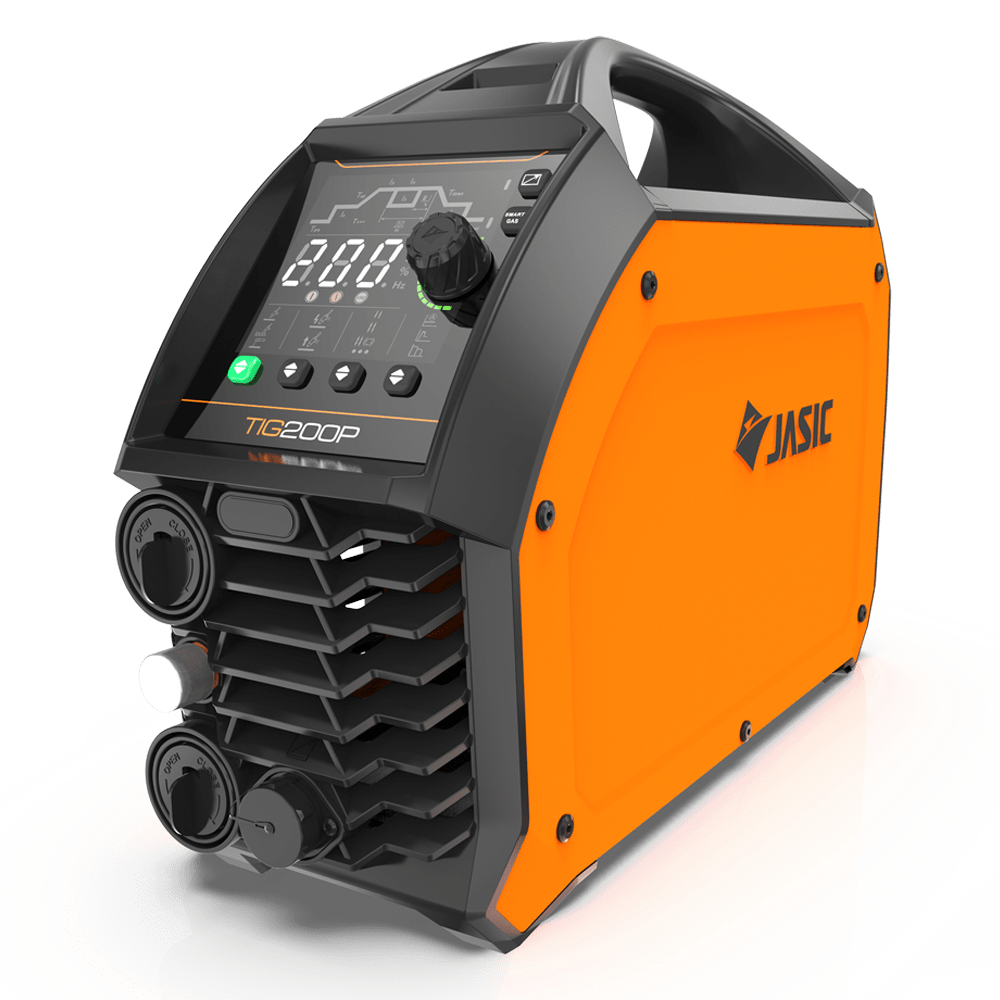

Jasic EVO TIG 200P DC PFC Pulse Inverter c/w Case & TIG Torch (TIG Welders)
Earn 698 points with this purchase
£698.60£838.32 Exc VATInc VAT
Call for further details
In stock
Dispatch resumes on Monday.
Jasic EVO TIG 200P DC PFC Pulse Inverter c/w Case & TIG Torch (TIG Welders)
Jasic EVO TIG 200P PFC Pulse Inverter – 5 Year Warranty
Package Includes: Inverter Power Source, Inverter Case, Leads, TIG Torch 4m, Argon Regulator, Gas Hose
Technical Data
| Input voltage | 95-265V, 50/60 Hz | |
| Voltage @ | AC 115V | AC 230V |
| No load voltage | 68V | |
| TIG rated input current | 29.7A | 19.5A |
| TIG Ieff | 14.9A | 9.8A |
| TIG rated input power | 3.4kVA | 4.5kVA |
| TIG current range | 5-160A | 5-200A |
| TIG duty cycle at 40 degrees C | 25% | |
| MMA rated input current | 31.6A | 25.6A |
| MMA Ieff | 15.8A | 12.8A |
| MMA rated input power | 3.7kVA | 5.9kVA |
| MMA current range | 10-120A | 10-180A |
| MMA duty cycle at 40 degrees C | 25% | |
| Efficiency | 84% | |
| Power factor | 0.99 | |
| Idle state power | MMA: 33W TIG: 7W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions – LxWxH | 453 x 150 x 313mm | |
| Weight | 8.97kg | |
| Recommended generator size *Generator must have AVR |
5kVA @ 115V 7kVA @ 230V |
|
