Tecna 16 kVA Pedal Microprocessor Control TE101

Tecna 16 kVA Pedal Microprocessor Control TE101

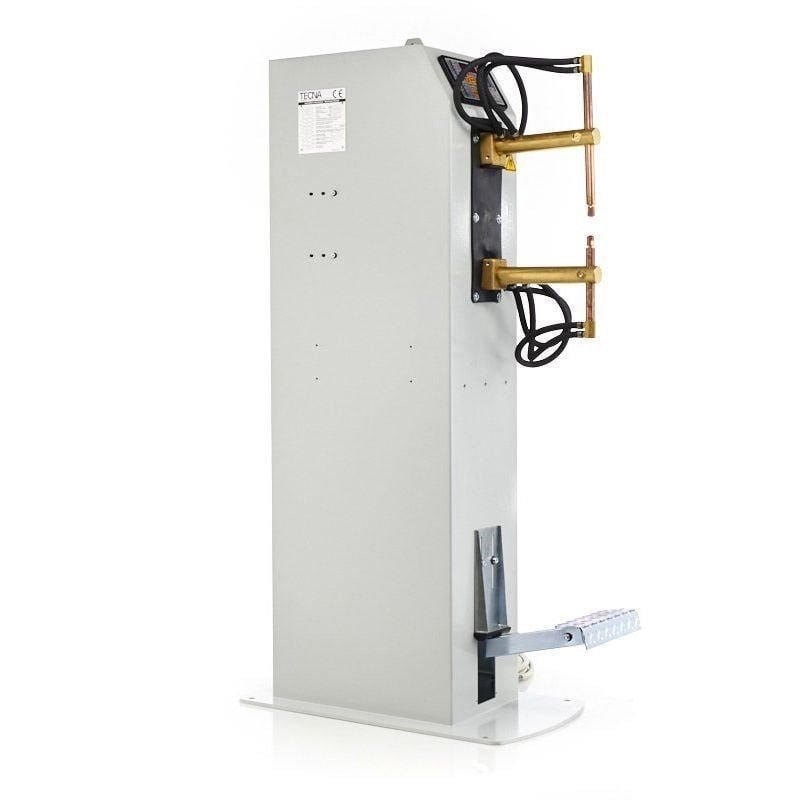

The 4640 Spot Welder by Tecna is a 16kVA pedal operated digital machine, perfect for production spot welding.

With a true 3 + 3mm spot welding capacity and water cooled arms, this Tecna Spot Welder is designed to meet every need of spot welding. A stationary ergonomic frame helps to facilitate the operators work and the frontally positioned control unit allow viewing of welding data even during the Spot welding cycle. An adjustable electrode force features on this machine: a microswitch starts the welding cycle when the pre-set desired value is reached.

Key Features:

– Adjustable length spot welding arms for greater working flexibility
– Chrome-Copper electrode-holders for heavy duty work and long life, designed for straight and angled fitting
– Water-cooled transformer, electrodes and arms
– Epoxy resin coated transfomer
– Adjustable electrode stroke
– Adjustable foot pedal length
– Water-cooled transformer, arms and electrodes.

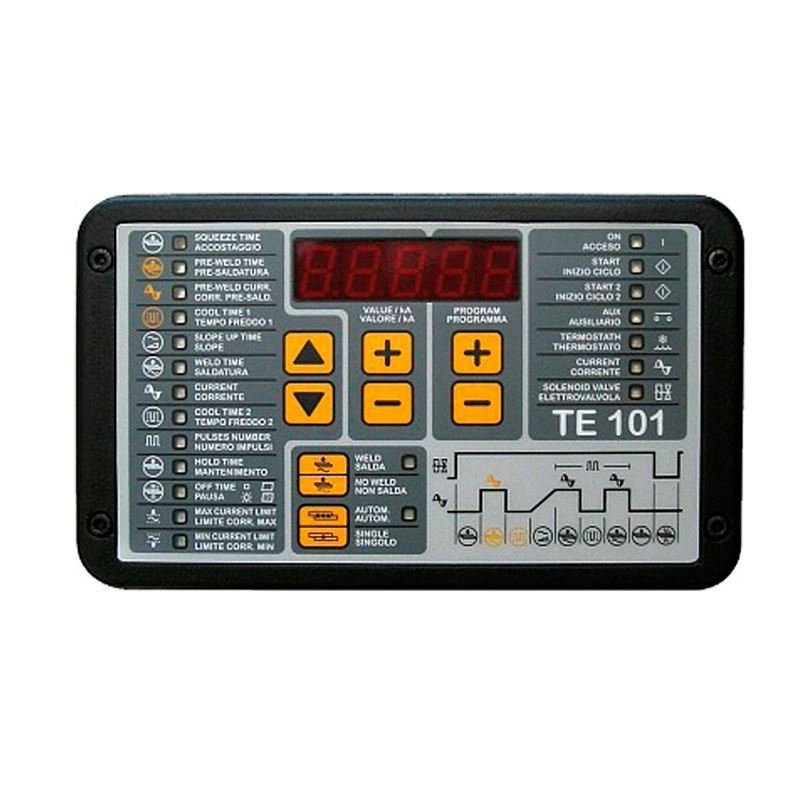

– Microprocessor control unit TECNA TE101.
– Digital adjustment of weld cycles and welding power

FREE UK MAINLAND DELIVERY
1 YEAR WARRANTY

Technical Spec:
Input Voltage 415V 50 Hz
Power @ 50% 16 kVA
Maximum Short Circuit Power 11,500 Amps
Arms Gap 225 mm
Min Throat Depth 230 mm
Max Throat Depth 550 mm
Force On Electrodes @ Max Length 95 dAN
Electrode Stroke @ Max 15 – 90 mm
Welding Timer TE101 Control
Water Consumption l/h 150
Min Water Pressure Bar 2.5
Arms Diameter 36 mm
Electrode Holders Diameter 19 mm
Weight Kg 116
Dimensions (mm)
