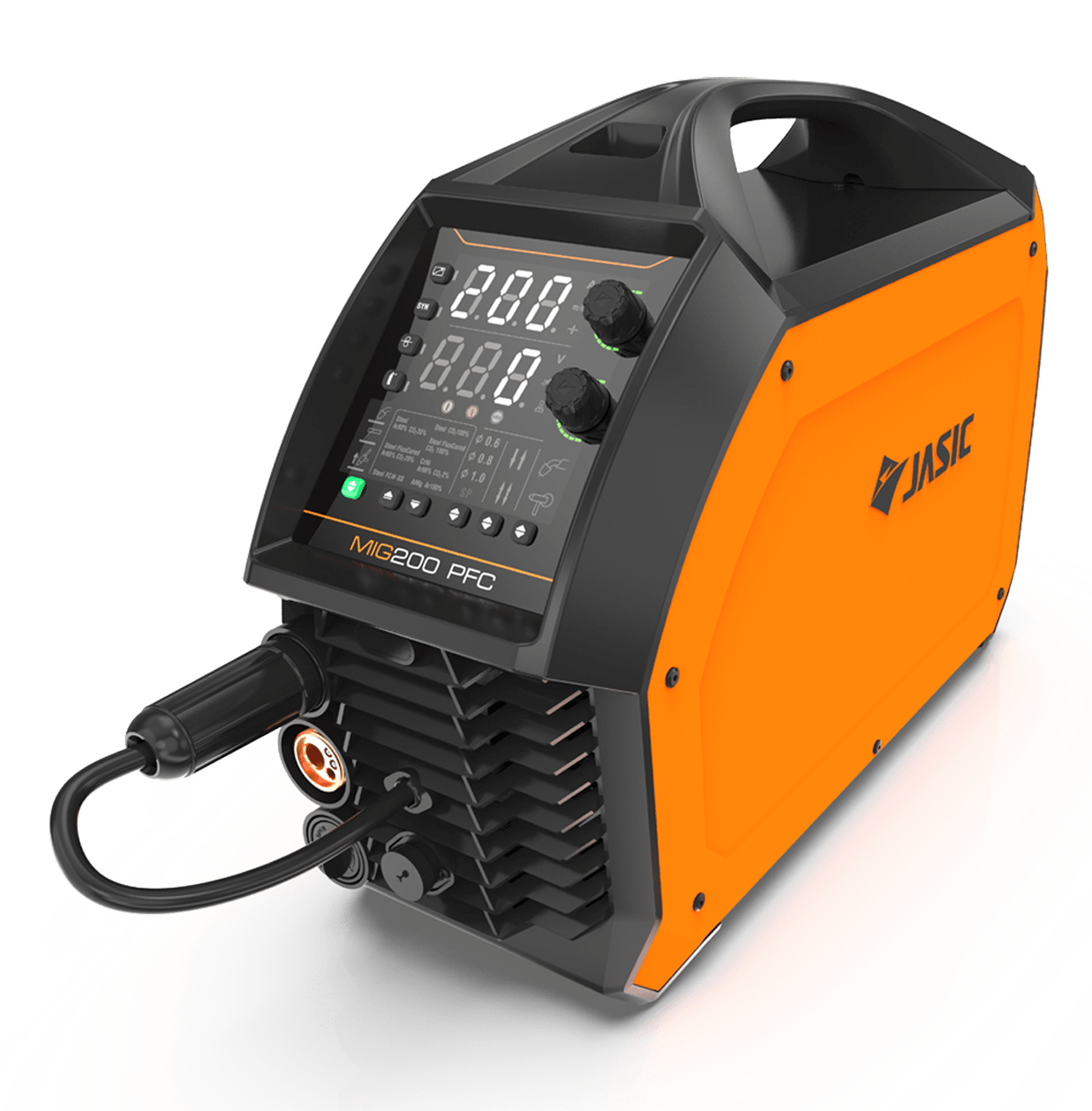

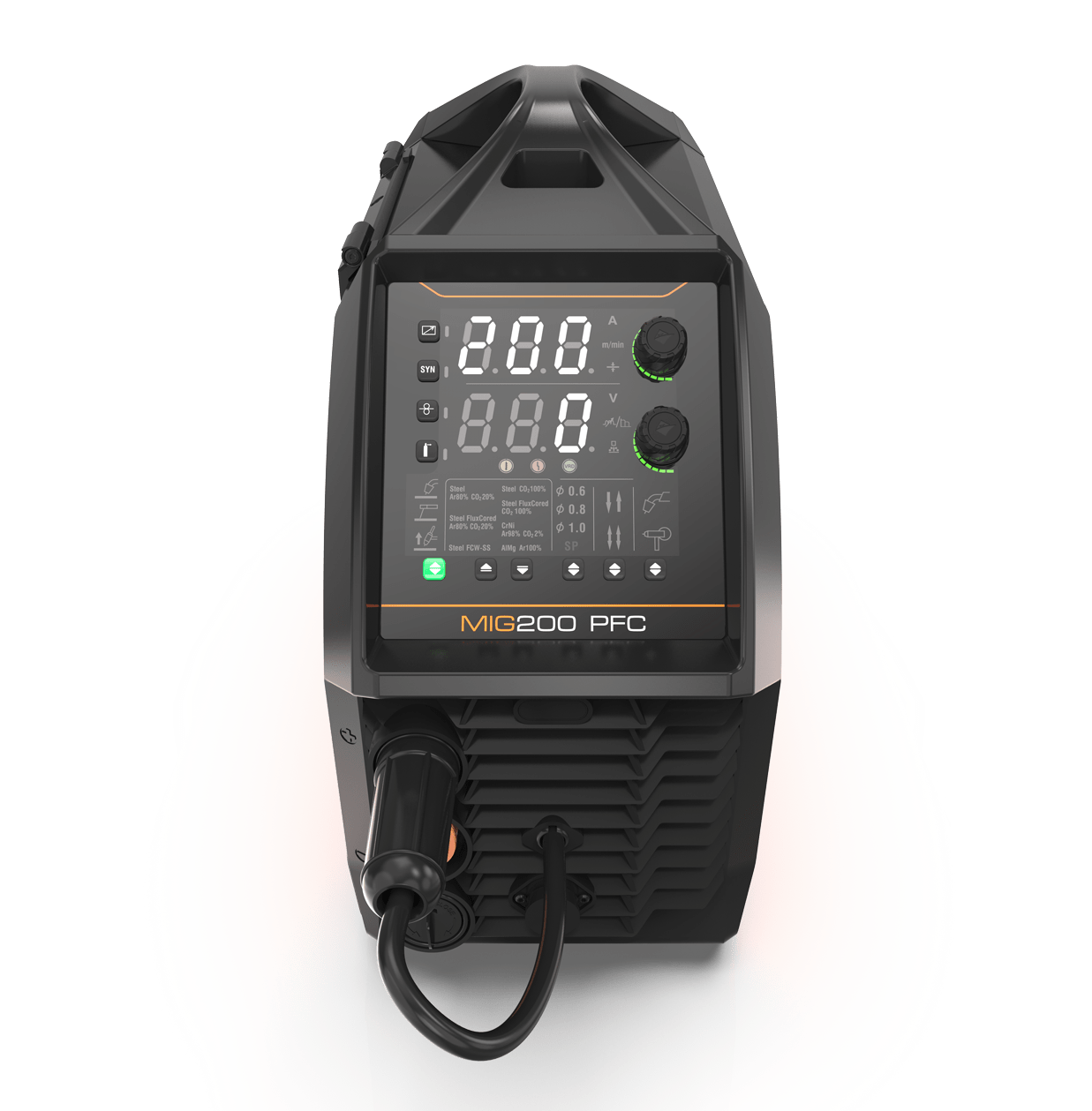

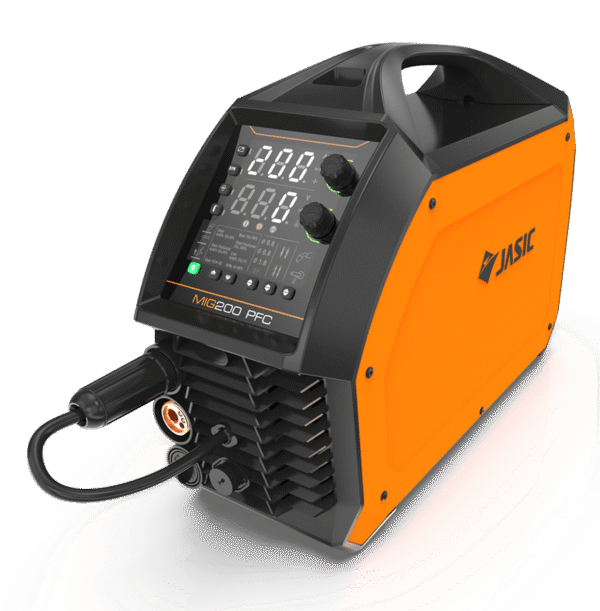

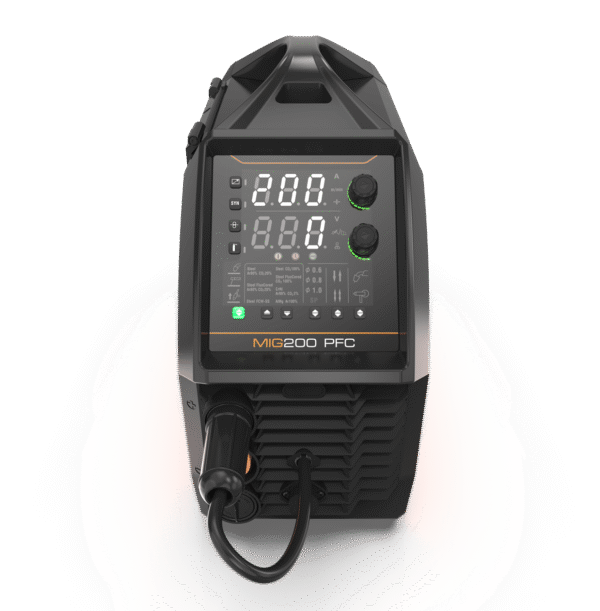

Jasic EVO MIG 200C PFC Compact Inverter (MIG Welder)
Jasic EVO MIG 200C PFC Compact Inverter – 5 Year Warranty
Package Includes: Inverter Power Source, 3m MIG Torch, 3m Earth Cable & Clamp, Argon Regulator, Gas Hose.
Technical Data
| Input voltage | 95-265V, 50/60 Hz | |
| Voltage @ | AC 115V | AC 230V |
| No load voltage | 67V | |
| MIG rated input current | 41.8A | 38.3A |
| MIG Ieff | 17.4A | 13.5A |
| MIG rated input power | 3.68kVA | 5.74kVA |
| MIG current range | 30-140A | 30-200A |
| MIG wire feed speed | 2-13m/min | 2-15m/min |
| MIG spool size | 5kg – 200mm Dia. | |
| MIG duty cycle at 40 degrees C | 25% | |
| MMA rated input current | 28.5A | 13.6A |
| MMA Ieff | 15.5A | 13.6A |
| MMA rated input power | 3.28kVA | 5.77kVA |
| MMA current range | 20-110A | 20-180A |
| MMA duty cycle at 40 degrees C | 25% | |
| TIG rated input current | 23.7A | 19.1A |
| TIG Ieff | 13.3A | 10.6A |
| TIG rated input power | 2.79kVA | 4.43kVA |
| TIG current range | 5-140A | 5-200A |
| TIG duty cycle at 40 degrees C | 25% | |
| Efficiency | 84% | |
| Power factor | 0.99 | |
| Idle state power | <50W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions – LxWxH | 565 x 220 x 415mm | |
| Weight | 16kg | |
| Recommended generator size *Generator must have AVR |
5.5kVA @ 115V 8.5kVA @ 230V |
|
