Jasic EVO Arc 200 PFC Inverter c/w Case & Leads (MMA Welder)
Earn 385 points with this purchase
£385.00£462.00 Exc VATInc VAT
Call for further details
In stock
Jasic EVO Arc 200 PFC Inverter c/w Case & Leads (MMA Welder)

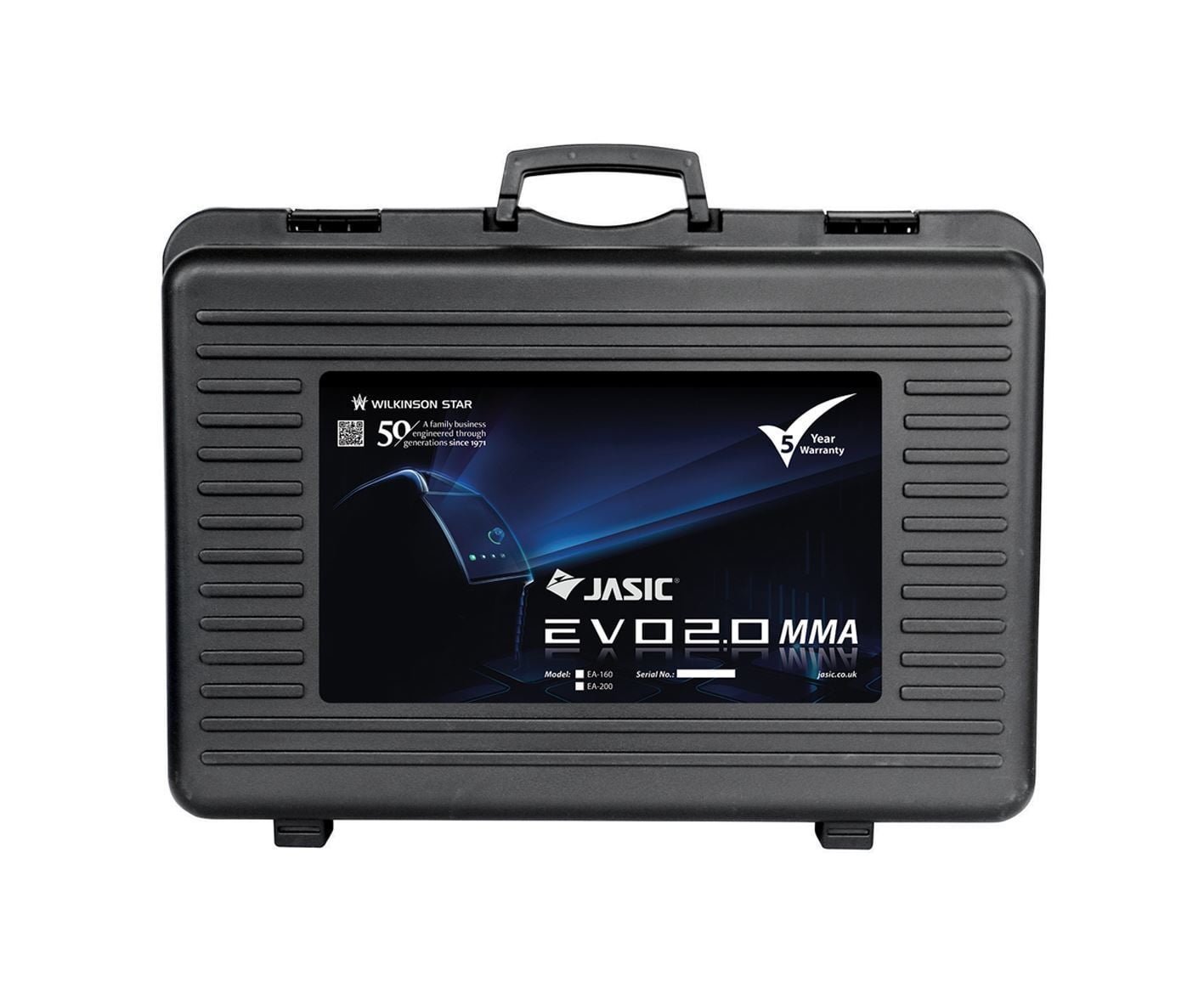

This is not just a standard stick welder by any means. If you are looking for a professional MMA unit then this is the one for you. Not only does it come with a robust case and 3m lead set it is also a machine that comes as standard with PFC. This means that it is perfect for site work on longer extension cables or indeed if you have to work with it on 110V you can. Combine this with a 5 year warranty straight out of the box and the rather handy features of the optional wired remote or wireless amperage adjustment it really stands out above the others in the market.

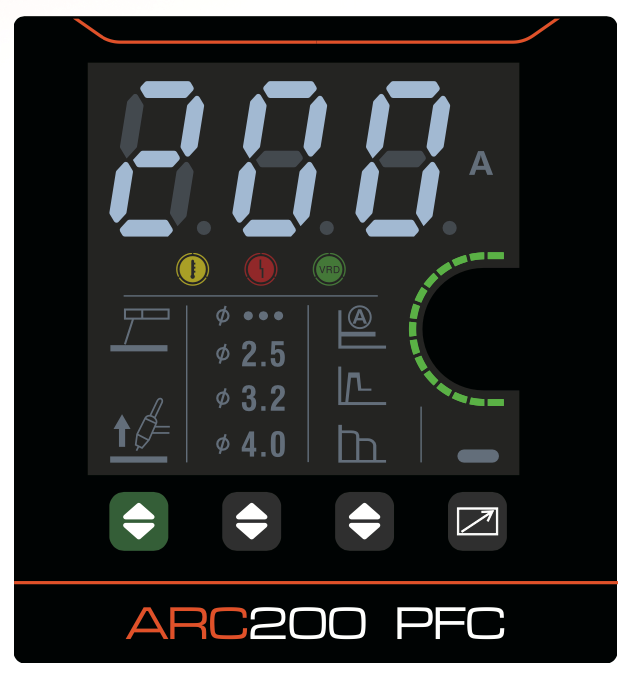

The design of the machine has been very well thought out and this ergonomic design lends itself beautifully to the ClearVision technology provided in front screen panel. Where normally a stick welder is just one control the EA-200 gives you an intelligent synergic control to make welding even easier and if you do want to control things manually you gain adjustable hot start and arc force controls too.
Technical Data
| Input voltage | 95-265V, 50/60 Hz | |
| Voltage @ | AC 115V | AC 230V |
| No load voltage | 78V | |
| MMA rated input current | 31.2A | 29.7A |
| MMA Ieff | 15.6A | 14.9A |
| MMA rated input power | 3.6kVA | 6.8kVA |
| MMA current range | 20-120A | 20-200A |
| MMA duty cycle at 40 degrees C | 25% | |
| TIG rated input current | 27.2A | 19.6A |
| TIG Ieff | 13.6A | 9.8A |
| TIG rated input power | 3.1kVA | 4.5kVA |
| TIG current range | 10-160A | 10-200A |
| TIG duty cycle at 40 degrees C | 25% | |
| Efficiency | 85% | |
| Power factor | 0.99 | |
| Idle state power | MMA: 46.8W TIG: 7W | |
| Protection class | IP23S | |
| Insulation class | H | |
| Dimensions – LxWxH | 413x150x311mm | |
| Weight | 7.2kg | |
| Generator Size Recommended | 5.5kVA (110V) 10kVA (230V) |
|
If running on a generator then please ensure the generator has AVR.
