HMT V35 Versadrive Magnetic Drill Machine Kit, 110V (Stakit Case)
£586.50£703.80 Excl. VATIncl. VAT
Dispatch resumes on Monday.
HMT V35 Versadrive Magnetic Drill Machine Kit, 110V (Stakit Case)
HMT V35 Versadrive Magnetic Drill Machine Kit, 110V (Stakit Case)

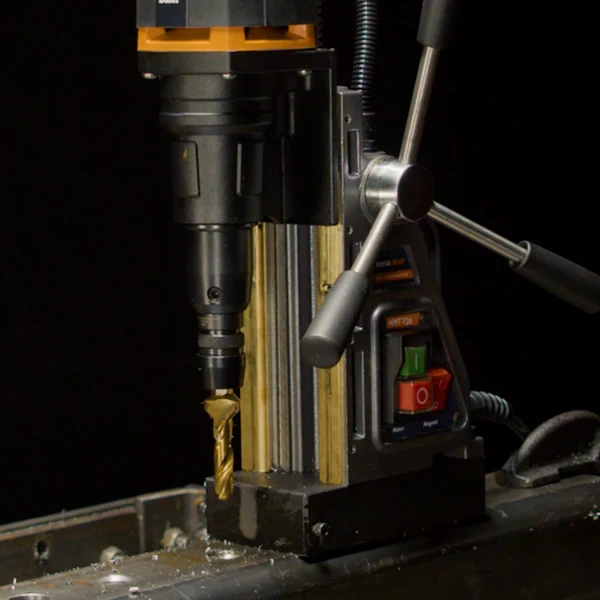

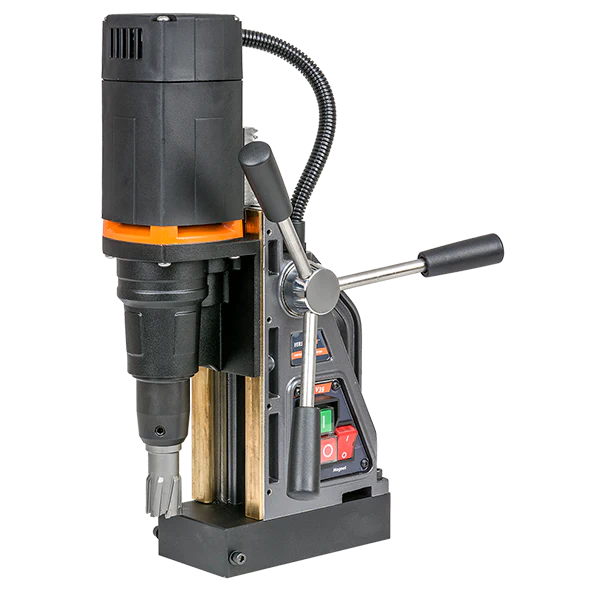

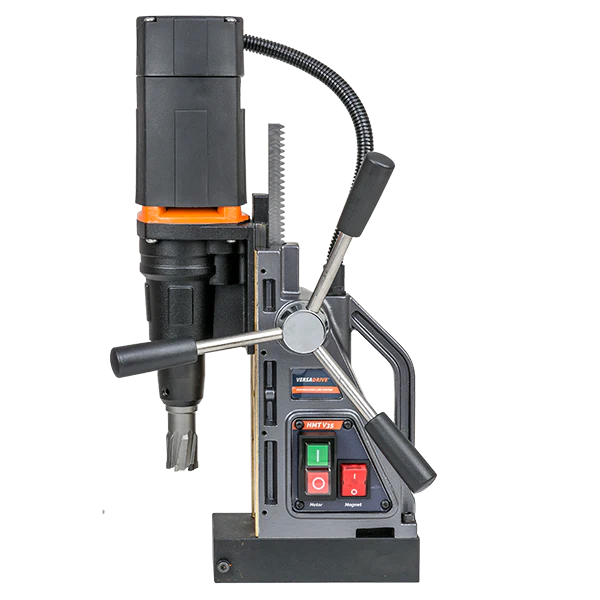

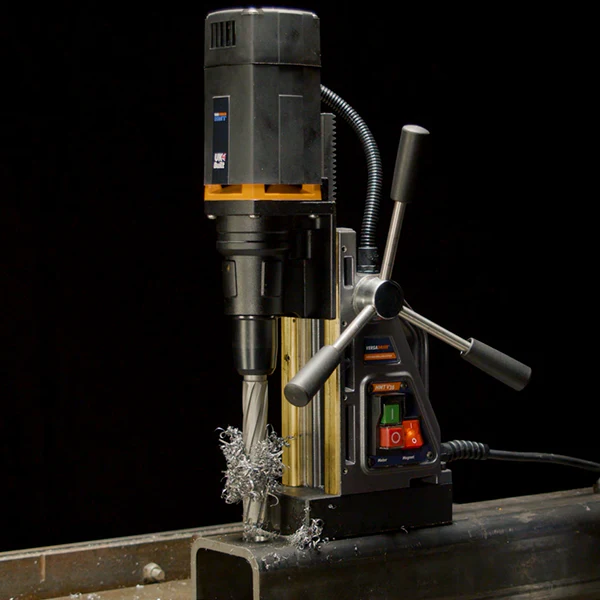

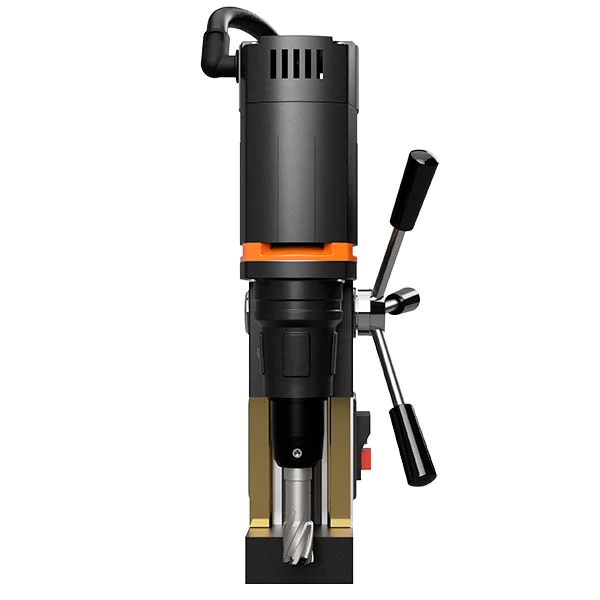

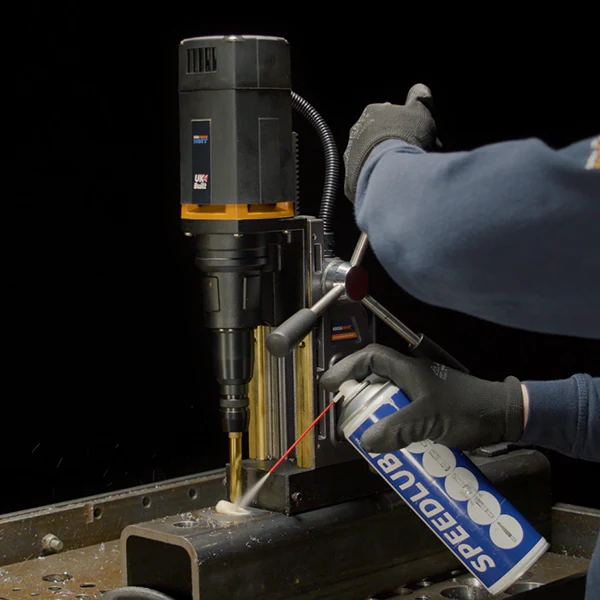

The HMT VersaDrive V35 is the first UK Built portable drilling machine designed for high-performance, low-maintenance, industrial quality drilling up to 35mm diameter.
With a 140mm stroke, maximum cutter length of 110mm and seamless integration with the VersaDrive modular cutting system, it offers the most flexibility of any compact Magnet Drill on the market.
MOST VERSATILE COMPACT MACHINE ON THE MARKET

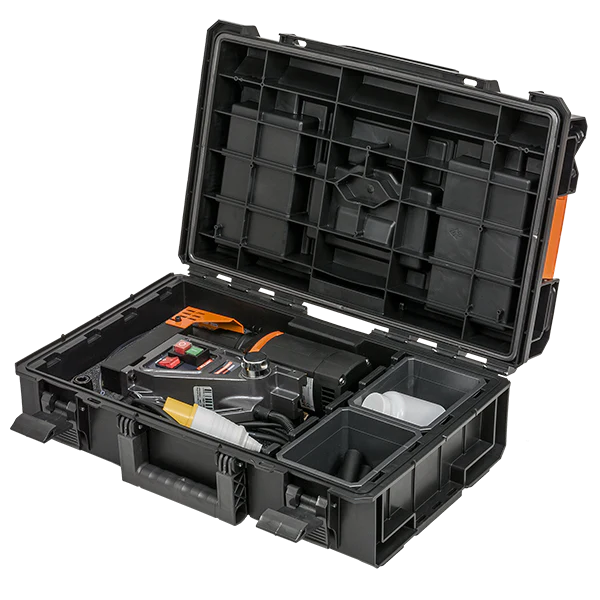

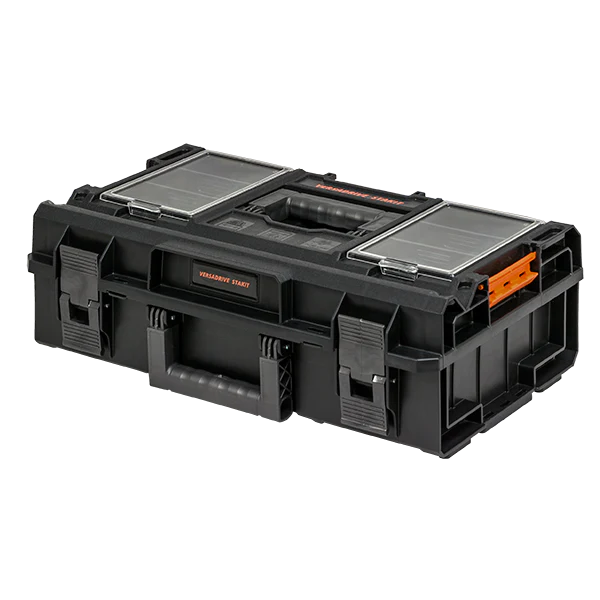

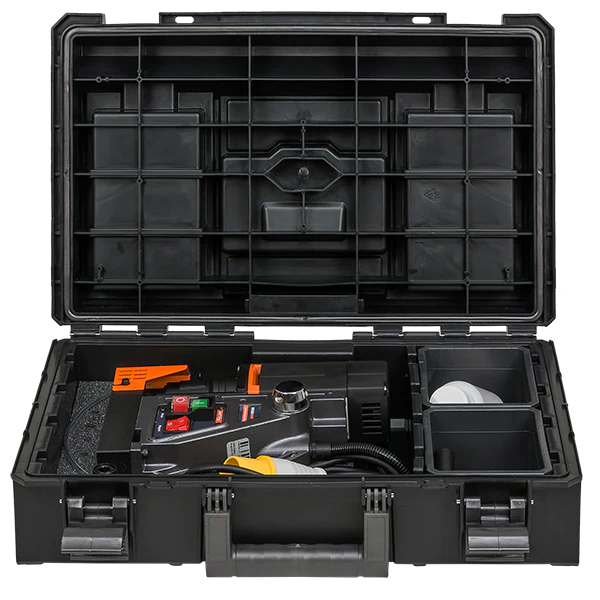

Supplied with handles, heavy duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case and gravity fed coolant system.
Technical Specification
| CUTTER SIZE RANGE | 12 – 35mm TCT |
| MAX CUTTER CAPACITY | 35mm TCT |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 12mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 25mm |
| LENGTH | 220mm |
| WIDTH (Inc Handles) | 173mm |
| HEIGHT (Min-Max) | 305-445mm |
| STROKE | 140mm |
| WEIGHT | 9.5 kg |
| MAGNET (L X W) | 160 x 80mm |
| MAGNETIC ADHESION | 1000 kgs |
| MOTOR POWER | 850w |
| TOTAL POWER | 900w |
| SPEED RPM (No Load) | 750 min-1 |
| SPINDLE | 3/4″ Weldon |
| ARBOR | Integral ¾€ Weldon |
| COOLANT SYSTEM | Gravity Oil Fed |
| WARRANTY | 2 Year (When registered) |
