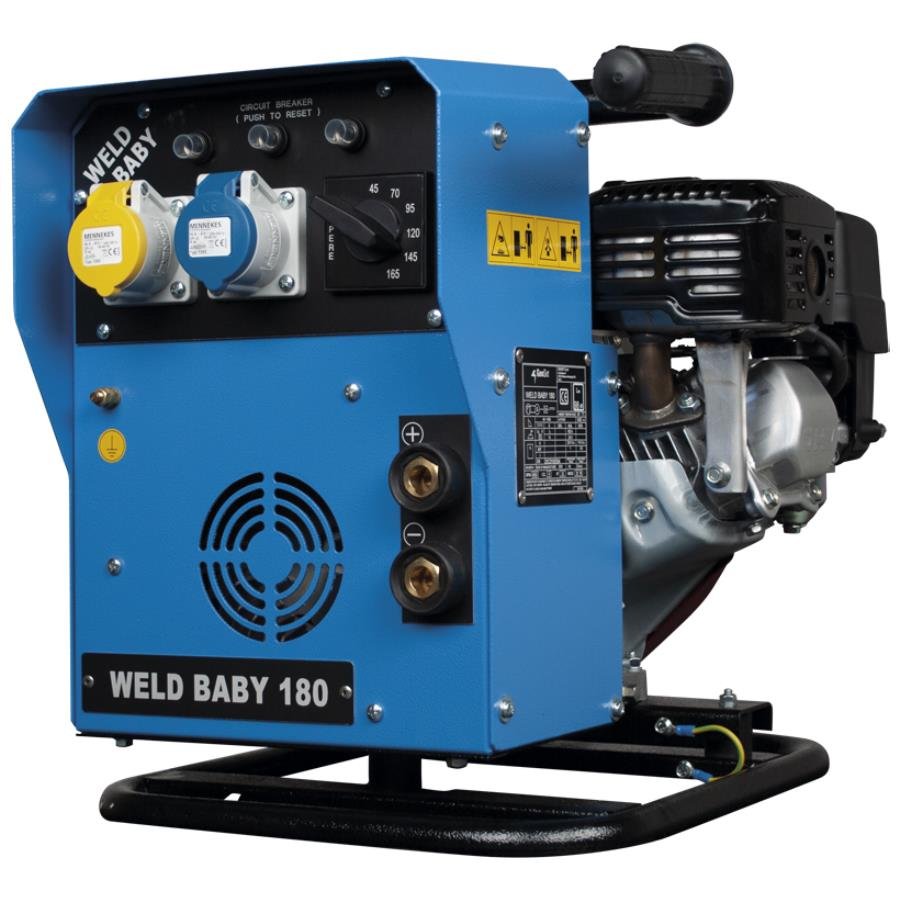

Genset Weld Baby 180 Petrol Welder Generator

Earn 1,800 points with this purchase

£1,800.00£2,160.00 Exc VATInc VAT

Is the Weld Baby 180 Powerful Enough for Professional On-Site Welding?

Yes, the GenSet Weld Baby 180 is powerful enough for professional on-site welding, delivering up to 165A output with a 60% duty cycle, making it suitable for maintenance, fabrication, and field repair work. It can run electrodes up to 4.0mm, including cellulosic and low-hydrogen types, providing the versatility needed for structural and general welding tasks. Powered by the reliable Honda GX200 petrol engine, it offers smooth DC output for stable arc performance and consistent weld quality. Its compact, portable design and built-in 110V and 230V auxiliary power outlets make it an ideal solution for professionals who need dependable welding capability in locations without mains power.

Collection or Next Day Delivery Available. Dispatches in:
SKU: GEN-165PH Categories: ,

The GenSet Weld Baby 180 is a compact, petrol-powered welder generator engineered for reliable on-site welding and auxiliary DC power. Designed with portability in mind, it combines a 165A SMAW welding output with 110V and 230V DC power take-off, making it suitable for maintenance, fabrication, and field work where mains power is unavailable.

Powered by the Honda GX200 Stage V petrol engine, the unit delivers dependable performance with low emissions compliance. Its smooth DC output supports both cellulosic and low-hydrogen electrodes up to 4.0 mm, while features such as auto idle and low-oil cut-out enhance efficiency and engine protection.

Key Features

  • SMAW welding output: up to 165A @ 60% duty cycle (24V)

  • Electrode capacity: up to 4.0 mm (cellulosic or low hydrogen)

  • Smooth DC output for stable arc performance

  • Dual DC power outlets:

    • 1 × 110V / 16A (0.5 kVA)

    • 1 × 230V / 16A (1.0 kVA)

  • Portable & lightweight: 35 kg dry weight

  • Auto idle and low-oil cut-out for efficiency and protection

  • Stage V compliant for reduced emissions

  • Manual recoil start

Engine & Fuel

  • Engine: Honda GX200, Stage V

  • Configuration: 1-cylinder, air-cooled

  • Power: 5.1 HP (3.8 kWm)

  • Displacement: 196 cm³

  • Fuel: Petrol

  • Fuel tank capacity: 3.1 litres

  • Fuel consumption: 1.8 litres/hour @ 75% load

Technical Specifications

  • Output range: 40A – 165A

  • Open circuit voltage: 70V

  • Generator type: Synchronous, Permanent Magnets (PMG), 50 Hz

  • Noise level: 98 LWA

  • Insulation class: H

  • Mechanical protection: IP23

  • Operating conditions:

    • Ambient temperature: up to 40°C

    • Altitude: up to 1000 m

  • Dimensions (L × W × H): 510 × 440 × 460 mm

  • Weight (dry): 35 kg

  • Country of origin: Made in Italy

Warranty

  • 2-year manufacturer’s warranty

The GenSet Weld Baby 180 Petrol Welder Generator offers a practical balance of portability, welding capability, and DC power output—well suited for professionals who need a dependable, compact solution for on-site welding and auxiliary power.
