F-Tech ICAP 2.0 H Wall Mounted Extractor 400V

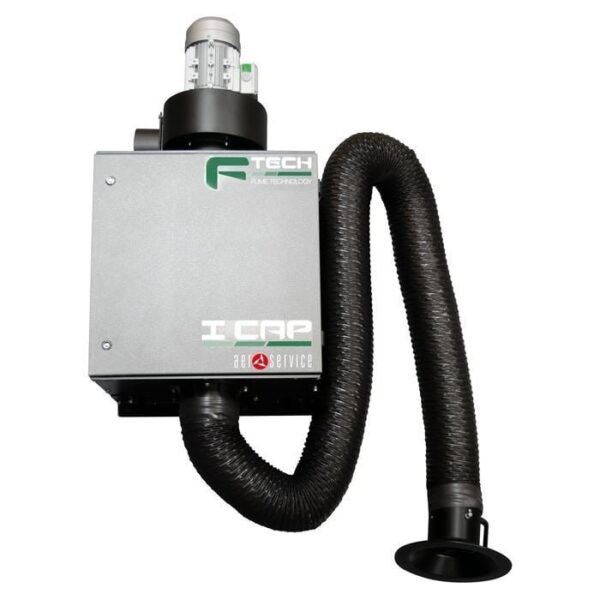

The F-Tech ICAP 2.0 is a wall mounted welding fume extraction system with self supporting heavy duty cantilevered 3 mtr arm.

KEY FEATURES
• 230 or 400 Volt models available
• High performance centrifugal extraction fan encased
in a rugged soundproof compartment
• Fixing holes on rear frame to allow wall mounting
• 3mtr arm (3mtr Armoflex or Armotech arms available)
• 2500m3/hr max flow
• 1480m3/hr max suction
• Powerful 3 stage effective E12 filtration up to 99.5%
• Filter Stages
Stage 1 – Metallic pre-filter 25%
Stage 2 – Corrugated polyester fibre pre-filter
Stage 3 – Absolute filter E12HEPA
• Durable steel with powder coated finish
• Meets latest HSE regulations

TECHNICAL DATA
• Filter efficiency 99.5%
• Motor power 1.5 Kw
• Rated input voltage 230V and 400V models 50Hz
• Flow rate pressure 2500m3/h (at hood)
• Max Suction 1400m3/h
• Noise levels 73dB(A)
• Dimensions 508 x 747 x 759 mm
• Weight 100 Kg
• The F-Tech ICAP 2.0 is a wall mounted welding fume extraction system with self supporting heavy duty cantilevered 3 mtr arm.
